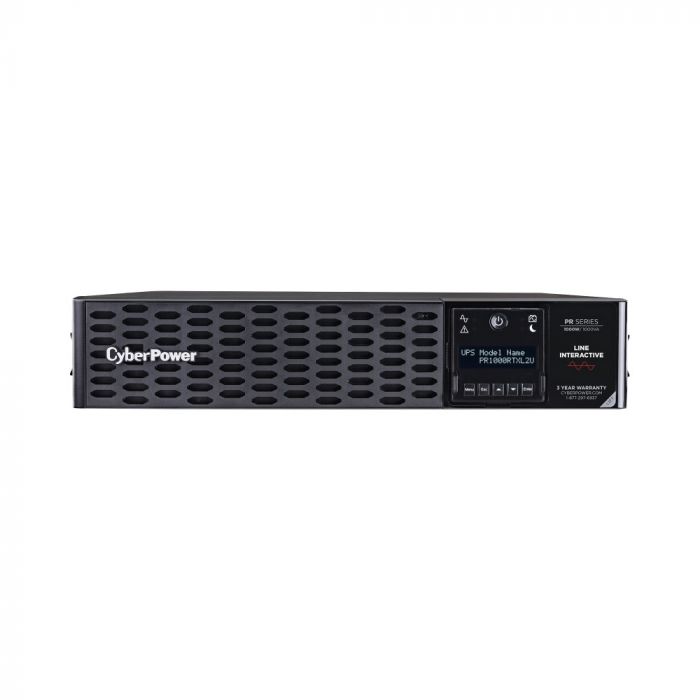

Cyberpower PR1000RTXL2U ups de 1000 va w, topología línea interactiva, entrada 120 vca nema 5-15p, onda senoidal pura, torre o rack 2 ur, con 8 tomas 5-15r

Precio especial $17,724.00 IVA incluido + Envio $150 MXN
Antes $20,560.00
Disponible 0 Pzas
Agotado
pub
MX0000079823
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo


CyberPower PR1000RTXL2U con diseño de montaje en rack, garantiza protección de respaldo de energía para sistemas de teatro en casa, dispositivos multimedia, equipos de TI, computadoras, estaciones de trabajo, NAS / dispositivos de almacenamiento, dispositivos de telecomunicaciones, dispositivos de red y sistemas de video vigilancia. El UPS adopta la topología de línea interactiva con regulación automática de voltaje (AVR) y ofrece salida de onda senoidal estabilizada para garantizar una alta calidad de potencia.

El factor de potencia de salida del UPS es 1, lo que significa que es capaz de conectarse a más cargas críticas que un UPS convencional. También cuenta con tecnología de gestión de baterías para ayudar a las baterías a obtener una vida útil óptima al equilibrar el voltaje de la batería. La carga de la batería en dos fases puede cargar la batería de forma rápida y segura. Los paquetes de baterías intercambiables en caliente permiten un fácil mantenimiento sin interrupción de la alimentación. Su pantalla LCD de matriz multifuncional admite una operación intuitiva y una configuración rápida. El panel LCD también puede rotar para cumplir con los requisitos de instalación.

Especificaciones técnicas:

  • Rango de voltaje de entrada: 78 - 149 Vca
  • Frecuencia de entrada: 50/60Hz + - 3Hz
  • Tipo de enchufe de entrada: NEMA 5-15P
  • Longitud de cable de entrada: 3 m.
  • Salida VA: 1500
  • Watts de salida: 1500
  • Factor de potencia: 1.0
  • Tomas de salida: 8 NEMA 5-15R
  • Especificaciones de batería: 4 x 12V/7Ah
  • Tiempo de transferencia: 4 ms
  • Tiempo de respaldo con media carga (500 W): 20 Minutos
  • Tiempo de respaldo con carga completa (1000 W): 8 Minutos
  • Protección de picos: 2430 Joules
  • Protección: RJ11 y RJ45
  • Indicadores: Pantalla LCD de monitoreo
  • Modulo de batería extendible: BP48VP2U01 (opcional)
  • Administración remota SNMP/HTTP con tarjeta RMCARD205 (opcional)
  • Dimensiones: 433 x 86.5 x 412 mm (Ancho x Alto x Profundidad)
  • Unidades de Rack: 2
  • Peso: 25.1 kg
  • NO Compatible con Generador.
  • 3 años de garantía (Incluye batería)



Description

The PR1000RTXL2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns. The Smart App Sinewave PR1000RTXL2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2U also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR100RTXL2U. Battery Backup Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown. Line-Interactive Topology Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery. Automatic Voltage Regulation (AVR) Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations. Sine Wave Output Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies. Battery Equalization Technology Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life. Fast Charge Technology Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM. Rotatable Multifunction LCD Panel Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options. Toolless Battery Panel Access Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover. Extended Battery Modules (EBMs) Use Fast Charge Technology to quickly restore full backup power to a UPS system. They also extend runtime. Surge Protection Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. Data-Line Protection Prevents power surges that travel through telephone, coaxial, and/or Ethernet lines from causing damage to electronics. GreenPower UPS™ Bypass Design Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup. Rack/Tower Versatility Allows for horizontal rack or vertical tower installation. PowerPanel® Business Edition Software Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. ENERGY STAR This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment. Three-Year Warranty CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.


Specifications



Power
Output power 1000 W
Input operation voltage (min) 70 V
Input operation voltage (max) 155 V
Output operation voltage (min) 100 V
Output operation voltage (max) 125 V
Surge energy rating 2430 J
Output power capacity 1 kVA
Power Factor Correction (PFC) type Active
Input frequency 47/63 Hz
Ports & interfaces
Cable length 100' (2.54 m)
USB port Yes
Serial interface Yes
Serial interface type RS-232
AC outlets quantity 8 AC outlet(s)
AC outlet types NEMA 5-15R
Power plug NEMA 5-15P
RS-232 ports 1
Ethernet LAN (RJ-45) ports 2
Battery
Battery type RB1270X4H
Number of batteries supported 4
Battery voltage 12 V
Battery capacity 7 Ah
Battery technology Sealed Lead Acid (VRLA)
Typical backup time at half load 20 min
Typical backup time at full load 8 min
Hot-swap battery Yes
Battery recharge time(90%) 3 h
Performance
Audible alarm modes Alarm when on battery, Low battery alarm, Overload alarm
UPS topology Line-Interactive
Waveform Sine
Automatic Voltage Regulation (AVR) Yes
LED indicators Yes
EMI/RFI noise filtering Yes
Audible alarm(s) Yes
Transfer time (Line Mode to Battery Mode) 4 ms
Features
Audible alarm modes Alarm when on battery, Low battery alarm, Overload alarm
UPS topology Line-Interactive
Waveform Sine
Automatic Voltage Regulation (AVR) Yes
Output power 1000 W
Input operation voltage (min) 70 V
Input operation voltage (max) 155 V
Output operation voltage (min) 100 V
Output operation voltage (max) 125 V
Surge energy rating 2430 J
EMI/RFI noise filtering Yes
Audible alarm(s) Yes
Output power capacity 1 kVA
Power Factor Correction (PFC) type Active
Transfer time (Line Mode to Battery Mode) 4 ms
Input frequency 47/63 Hz
Design
Rack capacity 2U
Form factor Rackmount/Tower
LED indicators Yes
Product colour Black
Safety UL1778, cUL107.1, FCC Class B
Display LCD
Cooling type Active
Cable length 100' (2.54 m)
Built-in fan Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 118110.2' (0 - 3000 m)
Non-operating altitude 0 - 590551.2' (0 - 15000 m)
Technical details
Sustainability certificates RoHS, ENERGY STAR
Cooling
Cooling type Active
Built-in fan Yes
Weight & dimensions
Weight 48.1 lbs (21.8 kg)
Width 17' (433 mm)
Height 3.41' (86.5 mm)
Depth 16.2' (412 mm)
Package width 22.1' (561.3 mm)
Package depth 20.9' (530.9 mm)
Package height 10.8' (274.3 mm)
Package weight 63.3 lbs (28.7 kg)
Packaging data
Screws included Yes
Rack mount kit Yes
Manual Yes
Cables included RS-232, USB cable
Package width 22.1' (561.3 mm)
Package depth 20.9' (530.9 mm)
Package height 10.8' (274.3 mm)
Package weight 63.3 lbs (28.7 kg)
Certificates
Safety UL1778, cUL107.1, FCC Class B
Other features
Battery type RB1270X4H
Packaging content
Screws included Yes
Rack mount kit Yes
Manual Yes
Cables included RS-232, USB cable
Más información
MarcaCyberpower
MPN:PR1000RTXL2U
