Cyberpower OL10KSTF transformador reductor de 208 vca a 120 vca, entrada hardwire con cable uso rudo, 6 salidas nema 5-20r y terminal hardwire, recomendado para ups modelos ol10krt ol8krt
Precio especial $46,893.00 IVA incluido + Envio $150 MXN
Antes $54,396.00
Disponible 0 Pzas
Antes $54,396.00
Disponible 0 Pzas
Agotado
pub
MX0000079819

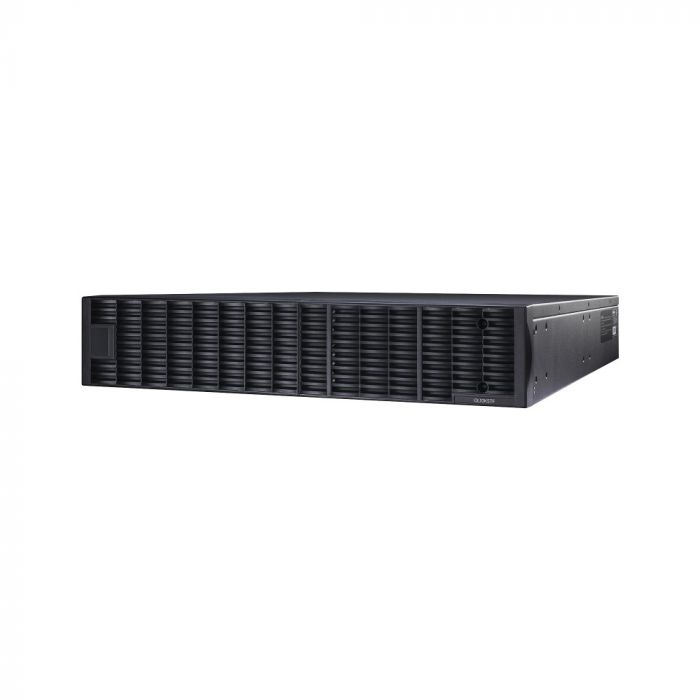

El transformador de aislamiento reductor de torre/rack OL10KSTF de CyberPower convierte el voltaje de entrada de 200 V a 240 V que se origina en la red eléctrica, a una salida de 120 V.
El OL10KSTF tiene una capacidad de 10,000 VA / 10,000 Watts. Cuenta con seis (6) receptáculos NEMA 5-20R que pueden admitir salida a cables de alimentación NEMA 5-15P y 5-20P. Un bloque de terminales de salida de cableado proporciona un medio para conectarse a un subpanel eléctrico.
El kit de cable de alimentación de 3 pies incluido (6AWGHW3FT) conecta el OL10KSTF a la alimentación de entrada. La protección contra sobretemperatura protege su OL10KSTF de daños si el calor interno excede los parámetros de operación seguros.
Especificaciones Técnicas:
- Potencia de Salida: 10,000 VA / 10,000 Watts
- Voltaje de Salida: 120/208 Vca a 50/60 Hz
- Entrada con Bloque Terminal Hardwire para cable de uso rudo (Cable de 3 pies 6AWGHW3FT inlcuido)
- Conversión de potencia: 208V del suministro eléctrico, UPS o generador a 120V de salida
- Salidas: Bloque terminal hardwire para cable uso rudo y 6 tomas NEMA 5-20R
- Formato: Rack/Torre
- Unidades de Rack: 2
- Protección de sobrecarga: Circuit Breakers de salida
- Protección por sobretemperatura: Si
- Dimensiones: 433 x 88 x 600 mm (Ancho x Alto x Profundidad)
- Peso: 54.4 kg
- Garantía: 3 años
Compatibilidad de UPS:
- OL8000RT3U
- OL8000RT3UPDU
- OL8KRT
- OL10000RT3U
- OL10000RT3UPDU
- OL10KRT
Description
The CyberPower Smart App Online OL10KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output. The OL10KSTF has a capacity of 10,000 VA / 10,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel. The included 3-foot power cable kit (6AWGHW3FT) connects the OL10KSTF to input power. Over temperature protection safeguards your OL10KSTF from damage if the internal heat exceeds safe operating parameters. A Three-Year Warranty ensures that this extended battery module has passed our highest quality standards in design, assembly, material or workmanship. Step-Down Transformer The step-down transformer provides IT managers the ability to support both 120 V and 208 V output requirements. With six (6) NEMA 5-20R outlets available, users will have sufficient outlets to connect multiple 120 V devices running at 15 A and/or 20 A. If additional outlets are needed, CyberPower has a number of different Power Distribution Units (PDU) making it easy to address your specific outlet needs. 6AWGHW3FT Input Power Cable Kit A 3 foot hardwire input power cable kit is included. Rack/Tower Versatility Allows for horizontal rack or vertical tower installation. Frequency Supported The OL10KSTF has the flexibility to support both 50 Hz and 60 Hz output. Over Temperature Protection Protects the OL10KSTF from damage if the internal heat exceeds safe operating parameters. Resettable Input and Output Circuit Breakers Convenient, resettable switches that provide protection from an input or output overload and faults. Three Year Warranty CyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details.
Specifications
| Features | |
|---|---|
| AC outlets quantity | 7 AC outlet(s) |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Rack mounting | Yes |
| Rack capacity | 2U |
| Load capacity | 10 VA |
| Input current (max) | 50 A |
| Housing colour | Black |
| AC output voltage | 120 - 208 V |
| Brand compatibility | CyberPower |
| Compatible products | OL8000RT3U OL8000RT3UPDU OL8KRT3UHW OL8KRTHW OL8KRTMB OL10000RT3U OL10000RT3UPDU OL10KRT3HW OL10KRTHW OL10KRTMB |
| Overheat protection | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 45 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 17' (433 mm) |
| Depth | 23.6' (600 mm) |
| Height | 3.46' (88 mm) |
| Weight | 119.9 lbs (54.4 kg) |
| Package width | 23.6' (600 mm) |
| Package depth | 35.4' (900 mm) |
| Package height | 13' (330 mm) |
| Package weight | 164 lbs (74.4 kg) |
| Technical details | |
| Sustainability certificates | RoHS |
| Marca | Cyberpower |
|---|---|
| MPN: | OL10KSTF |
