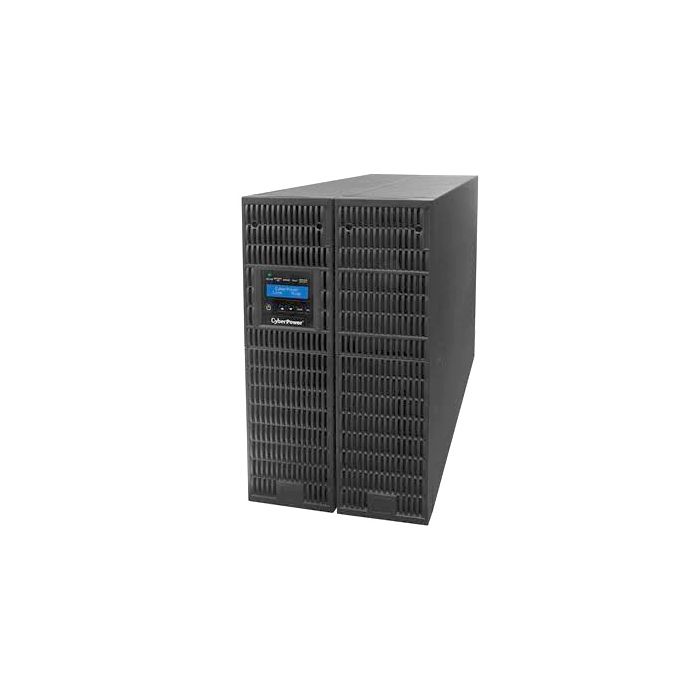

Cyberpower OL10000RT3U ups de 10000 va9000 w online doble conversión 200 - 240 vac entrada salida terminal hardwired onda senoidal pura torre o rack 6 ur con 3 tomas nema l6-30r

Precio especial $117,788.00 IVA incluido + Envio $150 MXN
Antes $136,634.00
Disponible 0 Pzas
Agotado
pub
MX0000079818
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo

-

width=600

*Nota: Este equipo debe ser arrancado por un experto de CyberPower para hacer efectiva la garantía. Para más información comunicarse con el departamento de Ingeniería.

*Nota 2: Este equipo entrega voltaje a la salida de 200-240 Vca y NO deriva a 120 Vca por fase. Sí se requiere voltaje de salida a 120 Vca se requiere forzosamente el modelo OL10000RT3UTF con transformador de bajada a la salida.



Para llevar a cabo el arranque del equipo deberá estar listo en la fecha programada con las siguientes características:

  • Cable 6 AWG cableado al UPS.
  • Nivel de voltaje de alimentación adecuado de 200-240 VAC.
  • Interruptor de entrada de 60 Ampers (2x30).
  • Sistema de aterrizaje aislado bien referenciado a tierra.

Aplicaciones:

El UPS Smart App Online OL1000ORT3U Rack/Torre de CyberPower con panel LCD y onda senoidal pura salvaguarda servidores de misión crítica, centros de datos y equipo de telecomunicaciones, VoIP y hardware de interredes que requieren corrección de energía. Su topología doble conversión Online es generador compatible y entrega energía CA consistente y limpia con cero tiempo de transferencia. El modo configurable GreenPower UPS ™ ECO mejora la eficiencia del UPS hasta un 95% y reduce costos de enfriamiento/energía.

Especificaciones técnicas:

  • Voltaje de entrada: 200 - 240 Vac
  • Frecuencia de entrada: 40 - 70 Hz
  • Tipo de enchufe de entrada Hardwired: Cable de Uso Rudo
  • Longitud del cable: N/A
  • Salida VA: 10,000.
  • Salida Watts: 9,000.
  • Factor de Potencia: 0.9
  • Voltaje en Batería: 200, 208, 220, 230, 240 Vac (Configurable) ±2%. No entrega salida de 120 Vac
  • Transforamdores reductores de 220 a 120 disponibles: OL10KRT2UTFHWIOR o OL8K10KRT3UTF
  • Total de tomas de salida: 4
  • Tipo de tomas: NEMA L6-30R (3), Bloque Terminal Hardwired (1)
  • Tiempo de respaldo con media carga: 11 minutos
  • Tiempo de respaldo con carga completa: 4 minutos
  • Protección de picos: grado de red
  • Administración Remota SNMP / HTTP: RMCARD305 (Opcional)
  • Módulo de Baterías Extendidas: BP240V30ART3U
  • Indicadores: Pantalla LCD de lectura
  • Tamaño en Rack: 6U
  • Dimensiones: 433 x 132 x 660 mm (Ancho x Alto x Profundidad).
  • Peso: 103 Kg.
  • 3 años de garantía (incluye batería).

Description

Smart App UPS | Network, Servers & Datacenter The CyberPower Smart App Online OL10000RT3U rack/tower uninterruptible power supply (UPS) with LCD control panel and pure sine wave output safeguards mission-critical servers, data center and telecom equipment, VoIP, and internetworking hardware that require seamless power correction. Its Double-Conversion Topology is generator compatible and delivers consistent and clean AC power with zero transfer time, protecting connected equipment and preventing costly business interruptions. Auto-bypass insures connected equipment continues to operate seamlessly when an overload or internal fault is detected. Configurable GreenPower UPS ECO Mode improves UPS efficiency to 95% and reduces electrical and cooling costs. Smart Battery Management (SBM) uses a 3 cycle charging mode to improve battery life and while reducing heat being generated. The LCD control panel provides 38 different settings to check status and customize the operating parameters for the OL10000RT3U, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (16) different parameters, (19) settings for setup, control, and testing of the UPS, and (3) selections for event logging. With a DB26 cable (sold separately) the LCD control panel can be removed from the UPS and relocated up to 10ft. away from the UPS for ease of viewing when installed in hard to reach locations. The UPS incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP/HTTP Remote Management adapter (RMCARD302) supports remote management and control of the OL10000RT3U through a standard web browser. The OL10000RT3U unit has a capacity of 10,000VA / 9,000Watts (0.9 power factor) that can be configured for an output of 200V, 208V, 220V, 230V and 240V +/- 2%. It features three (3) NEMA L6-30R receptacles, hardwire terminal block for output, hardwire input connection, and maintenance-free, hot swappable, user-replaceable batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. Network grade surge suppression and EMI/RFI filters increase the immunity of the load to noise disturbances. The runtimes are expandable by adding a hot swappable, user replaceable BP240V50ART3U Extended Battery Module (EBM). A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $300,000 Connected Equipment Guarantee.

Specifications

Power
Output power 9000 W
Input operation voltage (min) 200 V
Input operation voltage (max) 240 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Efficiency 95%
Emergency Power Off (EPO) Yes
Power factor 0.9
Output voltage Total Harmonic Distortion (THD) 5%
Crest factor 3:1
Output power capacity 10 kVA
Input frequency 40/70 Hz
Battery
Battery type 12V/9AH
Battery technology Sealed Lead Acid (VRLA)
Number of battery cells 20
Battery recharge time 5 h
Typical backup time at half load 11 min
Typical backup time at full load 4 min
Hot-swap battery Yes
Cold start Yes
Performance
Audible alarm modes Battery replacement
LED indicators Yes
EMI/RFI noise filtering Yes
Surge protection Yes
Surge protection features Network, Telephone
Noise level 55 dB
Audible alarm(s) Yes
Features
Audible alarm modes Battery replacement
Output power 9000 W
Input operation voltage (min) 200 V
Input operation voltage (max) 240 V
Output operation voltage (min) 200 V
Output operation voltage (max) 240 V
Efficiency 95%
EMI/RFI noise filtering Yes
Surge protection Yes
Surge protection features Network, Telephone
Emergency Power Off (EPO) Yes
Power factor 0.9
Output voltage Total Harmonic Distortion (THD) 5%
Noise level 55 dB
Crest factor 3:1
Audible alarm(s) Yes
Output power capacity 10 kVA
Input frequency 40/70 Hz
Ports & interfaces
AC outlets quantity 4 AC outlet(s)
USB 2.0 ports quantity 1
Serial ports quantity 1
Design
Rack capacity 6U
Form factor Rackmount/Tower
LED indicators Yes
Product colour Black
Display LCD
Certification ETL
Housing material Steel
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 118110.2" (0 - 3000 m)
Non-operating altitude 0 - 590551.2" (0 - 15000 m)
Technical details
Sustainability certificates RoHS
Packaging data
Package dimensions (WxDxH) 23.6 x 35.4 x 25.1" (600 x 900 x 638 mm)
Bundled software PowerPanel
Package weight 279.5 lbs (126.8 kg)
Weight & dimensions
Weight 227.1 lbs (103 kg)
Width 17" (433 mm)
Height 10.5" (266.7 mm)
Depth 26" (660 mm)
Package weight 279.5 lbs (126.8 kg)
Certificates
Certification ETL
Other features
Battery type 12V/9AH
Output connections 3 xNEMA L6-30R & 1 x Hardware Terminal Block
Input connection type Hardwire
Package dimensions (WxDxH) 23.6 x 35.4 x 25.1" (600 x 900 x 638 mm)
Management platform SNMP/HTTP
Packaging content
Bundled software PowerPanel
Más información
MarcaCyberpower
MPN:OL10000RT3U
