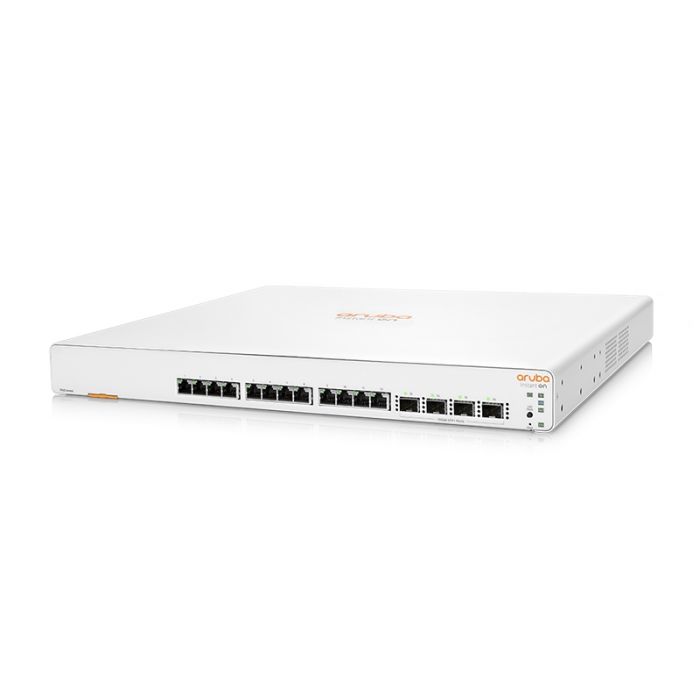

Aruba JL805A 1960 12xgt 4sfp switch
Precio especial $28,523.00 IVA incluido + Envio $150 MXN
Antes $33,087.00
Disponible 10 Pzas
Antes $33,087.00
Disponible 10 Pzas
sku: JL805A
pub
MX0000079671
Description
Hewlett Packard Enterprise Aruba Instant On 1960 12XGT 4SFP+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE.... Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Cloud-managed | Yes |
| Network | |
| IGMP snooping | Yes |
| IPv6 FIB entries | 512 |
| IPv4 FIB entries | 512 |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 512 |
| IPv4 FIB entries | 512 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Performance | |
| Stackable | Yes |
| Physical stacking (units) | 4 |
| Processor frequency | 2000 MHz |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Technical details | |
| Physical stacking (units) | 4 |
| Form factor | 1U |
| Product colour | White |
| Stackable | Yes |
| Processor frequency | 2000 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Data transmission | |
| Throughput | 238 Mpps |
| Latency (10-100 Mbps) | 7.4 µs |
| Latency (1 Gbps) | 4.2 µs |
| Latency (10 Gbps) | 1.1 µs |
| MAC address table | 16000 entries |
| Switching capacity | 320 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | Port-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| IPv6 FIB entries | 512 |
| IPv4 FIB entries | 512 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Form factor | 1U |
| Product colour | White |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 160 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width | 17.4' (442.5 mm) |
| Depth | 13.8' (350.5 mm) |
| Height | 1.73' (44 mm) |
| Weight | 9.48 lbs (4.3 kg) |
| Marca | Aruba |
|---|---|
| MPN: | JL805A |
