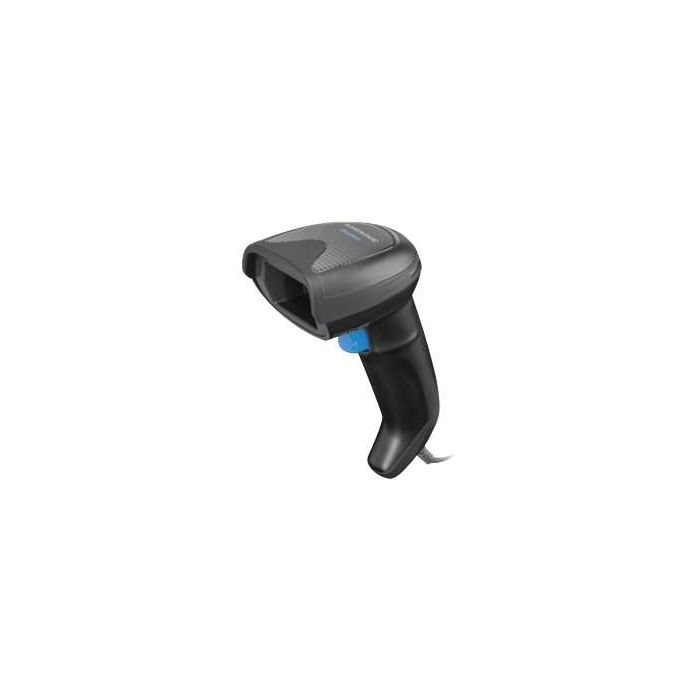

Datalogic GD4520-BK-USB adc gryphon i gd4520 2d mpixel imager usb-only black
Precio especial $6,660.00 IVA incluido + Envio $150 MXN
Antes $7,726.00
Disponible 4 Pzas
Antes $7,726.00
Disponible 4 Pzas
sku: GD4520-BK-USB
pub
MX0000079548
Description
The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications. The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance. The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options. Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment. The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Motion tolerance (cm/s) | 88.9 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Linear (1D) barcodes supported | Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C. |
| Yaw reading angle | -65 - 65° |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 360° |
| Scanner type | 1D/2D |
| Pitch reading angle | -65 - 65° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| Protection features | Shock resistant |
| Built-in display | No |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | IEC 60825 Class 2 |
| Image formats supported | BMP,JPEG |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | IEC 60825 Class 2 |
| Power | |
| Power consumption | 300 mA |
| Power source type | DC |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 2.68' (68 mm) |
| Depth | 4.29' (109 mm) |
| Height | 6.54' (166 mm) |
| Weight | 5.68 oz (161 g) |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant |
| Built-in display | No |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | IEC 60825 Class 2 |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Marca | Datalogic |
|---|---|
| MPN: | GD4520-BK-USB |
