Elo E321195 1093l 101-inch lcd (led backlight) open frame hdmi vga & display port video interface projected capacitive 10 touch zero-bezel usb controller worldwide-version clear no power brick
Precio especial $12,754.00 IVA incluido + Envio $150 MXN
Antes $14,795.00
Disponible 9 Pzas
Antes $14,795.00
Disponible 9 Pzas
sku: E321195
pub
MX0000079536
Description

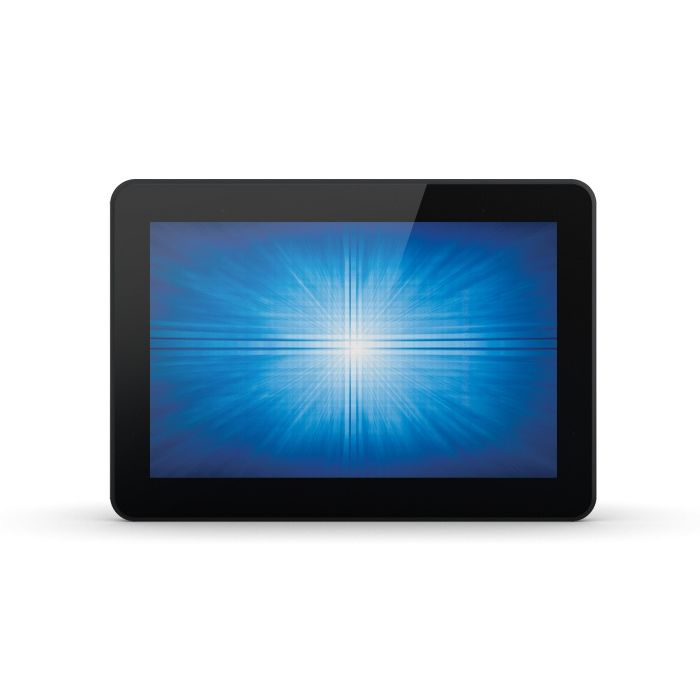

The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. Touch ready. This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. Other features. - 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities - Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing - Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount - Display Port and VGA video interfaces
Specifications
| Display | |
|---|---|
| Response time | 25 ms |
| Display diagonal | 10.1' |
| Display brightness | 350 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Display type | TFT-LCD |
| Display number of colours | 262144 colors |
| Display technology | LCD/TFT |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Touchscreen technology | Projected capacitive system |
| Supported graphics resolutions | 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 800 |
| Display viewable area (HxV) | 8.54 x 5.34' (217 x 135.6 mm) |
| Display resolution | 1280 x 800 pixels |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 60 kHz |
| Backlight type | LED |
| Aspect ratio | 16:10 |
| Design | |
| Product colour | Black |
| Performance | |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| Panel mounting interface | 75 x 75 mm |
| VESA mounting | Yes |
| Power | |
| Power supply type | AC/DC |
| Power consumption (typical) | 6.1 W |
| Power consumption (PowerSave) | 0.7 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 144015.7' (0 - 3658 m) |
| Non-operating altitude | 144015.7 - 480000' (3658 - 12192 m) |
| Weight & dimensions | |
| Width (without stand) | 10.1' (25.6 cm) |
| Depth (without stand) | 1.45' (3.69 cm) |
| Height (without stand) | 7.05' (17.9 cm) |
| Weight (without stand) | 2.65 lbs (1.2 kg) |
| Packaging data | |
| Package width | 13.2' (336 mm) |
| Package depth | 6.89' (175 mm) |
| Package height | 10.3' (262 mm) |
| Package weight | 5.73 lbs (2.6 kg) |
| Other features | |
| Power consumption (PowerSave) | 0.7 W |
| Marca | Otros |
|---|---|
| MPN: | E321195 |
