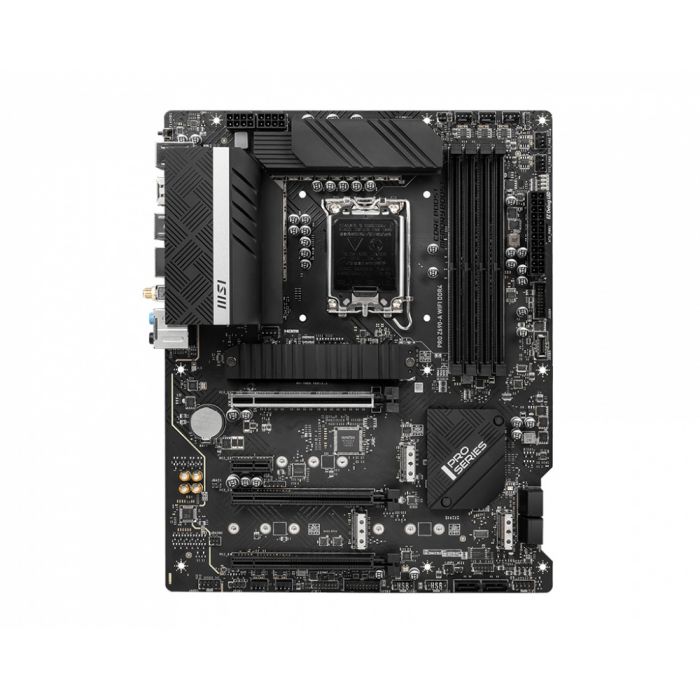

Msi PRO Z690-A WIFI DDR4 tarjeta madre soc 1700 atx , hdmi 12 va
Precio especial $4,743.00 IVA incluido + Envio $150 MXN
Antes $5,502.00
Disponible 0 Pzas
Antes $5,502.00
Disponible 0 Pzas
Agotado
pub
MX0000079286
MSI PRO Z690-A WIFI DDR4 Specs
CPU
Chipset | Intel Z690 |
CPU Socket | LGA 1700 |
Back Panel I/O
USB | 4 x USB 2.0 Type-A 2 x USB 3.1 / USB 3.2 Gen 1 Type-A 1 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2x2 Type-C |
Thunderbolt | None |
Display | 1 x DisplayPort 1.4Output 1 x HDMI 2.1Output |
Audio | 6 x 3.5 mm |
Ethernet / Controller | 1 x Intel I225-V 2.5Gigabit |
PS/2 | 1 x PS/2 |
Wi-Fi Antenna | 2 x Connector |
Buttons | BIOS Flashback |
Memory
Memory Slots | 4 x 288-Pin |
Memory Support | DDR4 2133, 2666, 2933, 3200, 4000, 4400, 4800, 5200 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
ECC Support | Non-ECC Unbuffered |
Storage Expansion
SATA | 6 x SATA III |
M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) 1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA III) |
U.2 | None |
RAID Support | RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5 (M.2) |
Internal I/O
Expansion Slots | 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4 mode) 1 x PCIe 3.0 x16 (x1 mode) 1 x PCIe 3.0 x1 |
USB | 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port) 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) |
Multi-GPU Support | AMD CrossFireX |
Air Cooling | 1 x 4-Pin CPU 6 x 4-Pin System |
Liquid Cooling | 1 x 4-Pin Pump |
Power Connectors | 1 x 24-Pin Mainboard 2 x 4-Pin ATX |
Security | Chassis Intrusion, TPM Header |
Diagnostics | 2-Digit Debug LED |
Front Panel I/O
I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
Audio
Audio Codec | Realtek ALC897 (8-Channel) |
Wireless
Bluetooth | 5.2 |
Wi-Fi | Wi-Fi 6E (802.11ax) (MU-MIMO) |
Module Support | 1 E Key M.2 |
Software
Supported Operating Systems | Windows 10 (64-Bit) Windows 11 (64-Bit) |
Physical
Form Factor | ATX |
Dimensions | 12.0 x 9.6' / 30.5 x 24.4 cm |
Packaging Info
Package Weight | 3.4 lb |
Box Dimensions (LxWxH) | 13.6 x 10.8 x 2.7' |
Marca | Msi |
---|---|
MPN: | PRO Z690-A WIFI DDR4 |
