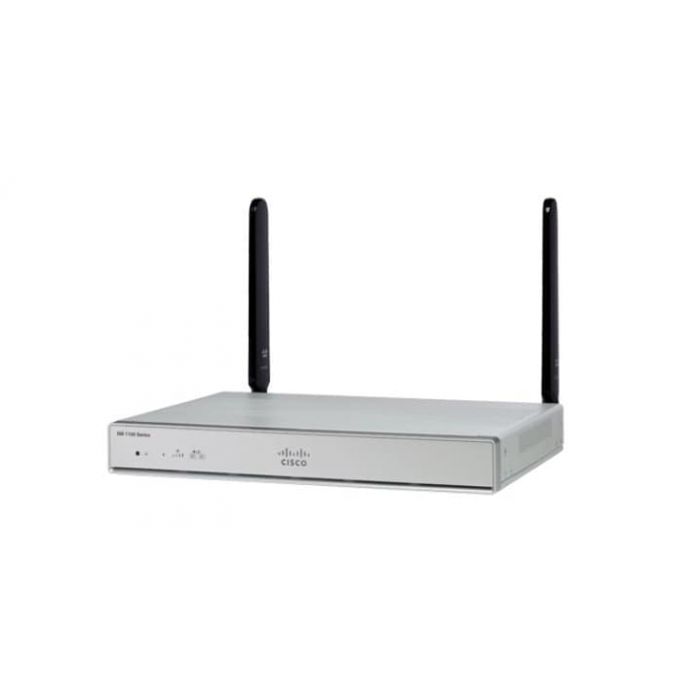

Cisco C1111-8PWN isr 1100 8 ports dual ge ethernet router w 802.11ac -n

Business need

Features/description

Lightweight, compact size with low power consumption

?Can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.

High performance to run concurrent services

?High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.

High availability and business continuity

? Redundant WAN connections for failover protection and load balancing.

? Dynamic failover protocols such as Virtual Router Redundancy Protocol (VRRP; RFC 2338), Hot Standby Router Protocol (HSRP), and Multigroup HSRP (MHSRP).

Consistent, high application performance levels

? The router can run multiple services simultaneously with minimal performance degradation.

Risk mitigation with multilevel security

? Network perimeter security with integrated application inspection firewall.

? Data privacy through high-speed IP Security (IPsec) Triple Data Encryption Standard (3DES), and Advanced Encryption Standard (AES) encryption.

? High-performance VPNs: DMVPN, FlexVPN, GET VPN, EzVPN

? Cisco Umbrella™ security architecture to provide content filtering via category-based URL classification and blocking, thus helping increase productivity and providing better use of company resources.

? Enforced security policy with OpenDNS.

? Security hardware acceleration.

? Trustworthy systems with Field-Programmable Gate Array (FPGA) and hardware anchor.

? Encrypted traffic analytics maintain integrity of encrypted flow

Unified control of wired and wireless networks from a common console for streamlined operations

? Simplifies and centralizes configuration and management of wireless and wireline devices. Supports WLAN services without requiring a wireless LAN controller.

? Supports Mobility Express for WLAN-enabled routers.

Remote configuration and management to keep local IT staff lean

? Supports separate console/auxiliary and USB ports.

? Can be configured to work with optional USB token.

? Supports TR-069.

Performance

? Throughput

? Service reliability

? Crypto performance up to 250 Mbps for 1100-8P and 150 Mbps for 1100-4P.

? A distributed multicore architecture with the industry’s first internal services plane.

? Remote installation of application-aware services that run identically to their counterparts in dedicated appliances.

Lower WAN expenditures

? Cisco Software-Defined WAN (SD-WAN) (over the Cisco Application Policy Infrastructure Controller Enterprise Module [APIC-EM]) support for optimized WAN connection.

Pay as you grow: IPsec performance upgrade model

? Router IPsec capacity can be increased with a remote performance-on-demand license upgrade (no hardware upgrade) for exceptional savings andCapEx budget management.

IT consolidation, space savings, and improved Total Cost of Ownership (TCO)

? Single converged branch platform integrates routing, switching, security, and performance management capabilities.

Business continuity and increased resiliency

? The entire 1100 Series supports Power over Ethernet (PoE) and PoE+ power to endpoints.

C1111-8PWN Specification

Description

ISR 1100 8 Ports Dual GE Ethernet Router w/ 802.11ac -N WiFi

Physical Properties

Dimensions (H x W x D)

Non-LTE models:

H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)

Weight with AC PS (w/o modules)

5.5 Lbs. (2.5 kg) maximum

AC Input Power

Input voltage

Universal 100 to 240 VAC

Frequency

50-60 Hz

Input current

PoE not enabled: 0.82A maximum

PoE enabled: 1.55A Maximum

Surge current

90 A peak and less than 8 Arms per half cycle

Ports

Micro USB Port

One RJ-45: Separate console port

USB port

USB 3.0 Type A host port

USB devices supported:

USB flash memory

Console port

One USB 5-pin micro Type B: Console management connectivity

10/100/1000 Gigabit Ethernet

Two GE ports allocated among RJ45 and SFP as:

One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0)

One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)

Wireless VLANs

32 (encrypted and non-encrypted VLANs)

Wireless specifications

2x2 .11ac Wave 2

Default and maximum DRAM

4GB

Default and maximum flash

4GB

Inline PoE

4 ports for -8P PIDs, 2 ports for -4P PIDs

802.3af-compliant PoE or 802.3at-compliant PoE+

Acoustic for Cisco 1100 Series ISRs

Not Applicable - Fanless design

Approvals and compliance

Emission

47 CFR Part 15

CISPR 32 Edition 2

EN 300 386 V1.6.1

EN 55032:2012/ AC:2013

EN 55032:2015

EN61000-3-2 2014

EN61000-3-3: 2013

ICES-003 ISSUE 6:2016

KN 32: 2015

V-2/2015.04

V-3/2015.04

TCVN 7189: 2009

CNS13438: 2006

IEC 60950-1

EN 60950-1

UL 60950-1

CSA C22.2 No. 60950-1

Immunity

CISPR24: 2010 + A1: 2015

EN 300 386 V1.6.1

EN55024: 2010 + A1: 2015

KN35: 2015

TCVN 7317: 2003

Environmental

Operating humidity

5 to 85% relative humidity

Operating temperature

32 to 104°F (0 to 40°C) Sea Level;

32 to 77°F (0°C to 25°C) at 10,000 ft

1.5°C derating per 1000 ft

Altitude in China

0-6560 ft (0-2000 m)

Altitude in all other countries

0-10,000 ft (0-3050 m)

Transportation and Storage

Nonoperating temperature

-40 to 158°F (-40 to 70°C)

Nonoperating humidity

5 to 95% relative humidity (noncondensing)

Nonoperating altitude

0 to 15,000 ft (0 to 4570m)
