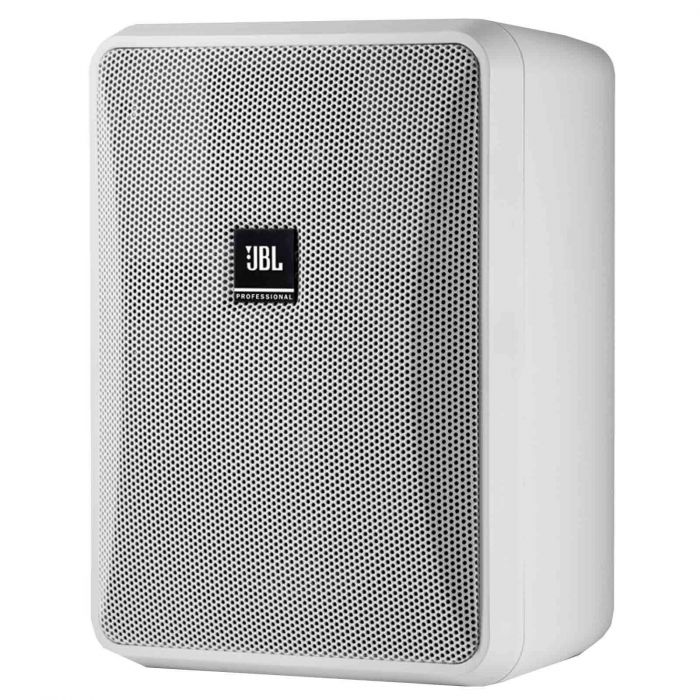

Otros CONTROL25-1-WH jbl professional control 25-1 - altavoces para sistema pa
Precio especial $7,354.00 IVA incluido + Envio $150 MXN
Antes $8,531.00
Disponible 0 Pzas
Antes $8,531.00
Disponible 0 Pzas
Agotado
pub
MX0000079137
JBL CONTROL 25-1-WH Specs
Active or Passive | Passive |
Speaker Configuration | 2-Way |
Power Handling | For 100 Hours: 75 W RMS 300 W Peak For 2 Hours: 200 W Program 100 W RMS 400 W Peak |
Constant Voltage / Transformer Taps | 100 V: 30 / 15 / 7.5 W or 8 Ohms Bypass 70 V: 30 / 15 / 7.5 / 3.7 W or 8 Ohms Bypass |
Impedance | 8 Ohms (Thru Setting) |
Drivers
HF Driver | 0.75' / 19 mm PEI Tweeter |
LF Driver | 5.25' / 13.5 cm Fiberglass Woofer |
Performance
Frequency Response | 60 Hz to 20 kHz ±10 dB 85 Hz to 17 kHz ±3 dB |
Sensitivity | 90 dB |
Coverage Angle | 100° H x 100° V |
Directivity | 6 (Directivity/Q Factor) 7.6 dB (Directivity Index) |
Crossover | Low-Pass: 12 dB/Octave High-Pass: 12 dB/Octave |
Recommended High-Pass Filter | 60 Hz, 24 dB/Octave |
Maximum Input Voltage | 25.3 V RMS 50.6 V Peak |
Transformer Insertion Loss | <0.94 dB |
Connectivity
I/O Connectors | Screw Terminal |
Maximum Wire Gauge | 12 AWG / 2.5 mm |
Environmental
Certifications | RoHS, UL, as per Manufacturer |
IP Rating | IP44 |
Physical
Color | White |
Construction Material | High-Impact Polystyrene, Metal Grille |
Dimensions | 9.6 x 7.4 x 5.7' / 243 x 188 x 145 mm |
Weight | 7.5 lb / 3.4 kg |
Packaging Info
Package Weight | 18 lb |
Box Dimensions (LxWxH) | 16 x 11.75 x 11.4' |
Marca | Otros |
---|---|
MPN: | CONTROL25-1-WH |
