Otros CONTROL16C/T-BK jbl control16c t-bk professional control 16ct-bk - 10 series altavoces
Precio especial $5,076.00 IVA incluido + Envio $150 MXN
Antes $5,888.00
Disponible 0 Pzas
Antes $5,888.00
Disponible 0 Pzas
Agotado
pub
MX0000079134
Description

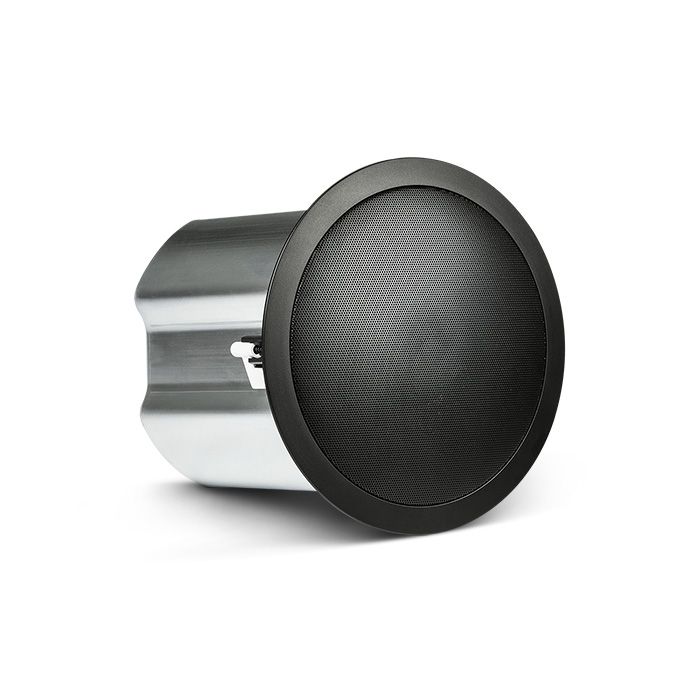

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation. The speaker is designed to provide excellent sound quality for a wide variety of medium to high volume applications such as music cafes, business music systems, retail stores, music/ paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.
The speaker delivers consistent sound quality for listeners located both off and on axis.
The high technology 165 mm (6.5 in) lowfrequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high temperature grade voice coil for stable performance and reliability under long-term high power working conditions. The butyl rubber surround provides longterm durability and excellent sonic damping while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allow for a smooth frequency response and more consistent off-axis performance. The 19 mm (3/4 in) high frequency driver features a highly damped treated silk dome for clear and warm sound, a lightweight Kapton™ voice coil for better high frequency response and excellent reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response.
The removable locking connector has screw terminals for secure wire termination and “loop through” terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit.
Ideal for a wide variety of projects, the Control 16C/T is switchable for use as either an 8 ohm low-impedance speaker or as part of a 70V or 100V distributed loudspeaker system with a 30 Watt multi-tap transformer. The speaker comes complete with two tile rail supports, one C-ring support backing plate, cutout template, paint shield and grille. A safety seismic attachment ring is provided on the top surface. Available in white or black (-BK).
- Blind-mount backcan for quick and easy install
- Dual conduit/cable clamps
- 62 Hz – 20 kHz bandwidth with wide 110° coverage
- High 91 dB sensitivity for high maximum SPL
- White or black (-BK)
The speaker delivers consistent sound quality for listeners located both off and on axis.
The high technology 165 mm (6.5 in) lowfrequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high temperature grade voice coil for stable performance and reliability under long-term high power working conditions. The butyl rubber surround provides longterm durability and excellent sonic damping while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allow for a smooth frequency response and more consistent off-axis performance. The 19 mm (3/4 in) high frequency driver features a highly damped treated silk dome for clear and warm sound, a lightweight Kapton™ voice coil for better high frequency response and excellent reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response.
The removable locking connector has screw terminals for secure wire termination and “loop through” terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit.
Ideal for a wide variety of projects, the Control 16C/T is switchable for use as either an 8 ohm low-impedance speaker or as part of a 70V or 100V distributed loudspeaker system with a 30 Watt multi-tap transformer. The speaker comes complete with two tile rail supports, one C-ring support backing plate, cutout template, paint shield and grille. A safety seismic attachment ring is provided on the top surface. Available in white or black (-BK).
- Blind-mount backcan for quick and easy install
- Dual conduit/cable clamps
- 62 Hz – 20 kHz bandwidth with wide 110° coverage
- High 91 dB sensitivity for high maximum SPL
- White or black (-BK)
Specifications
| Loudspeakers | |
|---|---|
| Speaker type | 2-way |
| Speaker placement | In-wall/in-ceiling |
| Number of drivers | 1 |
| Tweeter | Yes |
| Woofer | Yes |
| Tweeter diameter | 0.75' |
| Woofer diameter (imperial) | 6.5' |
| Tweeter diameter | 0.748' (1.9 cm) |
| Driver cone material | Polypropylene |
| Woofer diameter | 6.5' (16.5 cm) |
| Recommended usage | Home |
| Audio | |
| Frequency range | 62 - 20000 Hz |
| Impedance | 8 Ω |
| Sensitivity | 91 dB |
| RMS rated power | 100 W |
| Performance | |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS),Steel |
| Detachable protection cover | Yes |
| Certification | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Recommended usage | Home |
| Technical details | |
| Speaker type | 2-way |
| Product colour | Black |
| Detachable protection cover | Yes |
| Certification | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Design | |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS),Steel |
| Detachable protection cover | Yes |
| Certification | UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Binding post | Yes |
| Power | |
| Transformer taps | 7.5,15,30 W |
| DC input voltage | 70/100 V |
| Material | |
| Housing material | Acrylonitrile butadiene styrene (ABS),Steel |
| Driver cone material | Polypropylene |
| Weight & dimensions | |
| Width | 9.96' (253 mm) |
| Depth | 9.96' (253 mm) |
| Height | 10.3' (262 mm) |
| Height (with stand) | 9.96' (253 mm) |
| Weight | 7.5 lbs (3.4 kg) |
| Packaging content | |
| Mounting brackets included | Yes |
| Marca | Otros |
|---|---|
| MPN: | CONTROL16C/T-BK |
