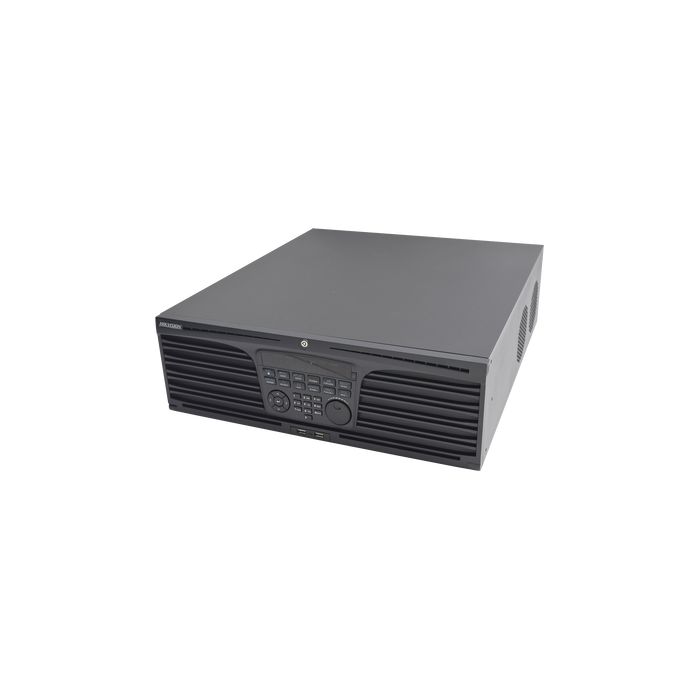

Hikvision DS-9632NI-I16 nvr 12 megapixel (4k) 32 canales ip 16 bahías de disco duro 2 tarjetas red soporta raid con hot swap hdmi en 4k pos
Precio especial $31,987.00 IVA incluido + Envio $150 MXN
Antes $37,105.00
Disponible 0 Pzas
Antes $37,105.00
Disponible 0 Pzas
Agotado
pub
MX0000078985
Description
Professional and Reliable - Dual-OS design to ensure high reliability of system running - ANR technology to enhance the storage reliability when the network is disconnected - HDD hot swap with RAID0, RAID1, RAID5, RAID6 and RAID10 storage scheme configurable - Either Normal or Hot Spare working mode is configurable to constitute an N+1 hot spare system. HD Input - H.265/H.264+/H.264/MPEG4 video formats - Connectable to the third-party network cameras - Up to 64 IP cameras can be connected - Recording at up to 12 MP resolution - Supports live view, storage, and playback of the connected camera at up to 12 MP resolution HD Output - HDMI1/VGA1 and HDMI2/VGA2 outputs provided - HDMI1 Video output at up to 4K (3840 × 2160) resolution HD Storage - Up to 16 SATA interfaces and 1 eSATA interface connectable for recording and backup - Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format HD Transmission - 2 self-adaptive 10M/100M/1000M network interfaces, and two working modes are configurable: multi-address and network fault tolerance
Specifications
| Performance | |
|---|---|
| Video input channels | 32 channels |
| Alarm input channels | 16 |
| Alarm output channels | 8 |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.264,H.264+,H.265,MPEG4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported resolutions | 3840 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Video recording modes | 1080p,2160p |
| Output bandwidth | 256 Mbit/s |
| Input bandwidth | 320 Mbit/s |
| Wireless LAN features | |
| Wi-Fi | No |
| Storage | |
| Number of HDDs supported | 16 |
| Maximum storage capacity | 96 TB |
| HDD interface | Serial ATA |
| RAID support | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) | Yes |
| VGA (D-Sub) output ports | 2 |
| HDMI output | Yes |
| USB 2.0 ports quantity | 2 |
| RS-485 ports | 1 |
| RS-232 interface | Yes |
| eSATA | Yes |
| Audio RCA inputs | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Audio RCA outputs | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| eSATA ports quantity | 1 |
| RS-232 ports | 1 |
| HDMI ports quantity | 2 |
| Features | |
| Rack mounting | Yes |
| On/off switch | Yes |
| Rack capacity | 3U |
| Product colour | Black |
| Power | |
| Power consumption (typical) | 45 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply | 300 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 17.5' (445 mm) |
| Depth | 19.5' (496 mm) |
| Height | 5.75' (146 mm) |
| Weight | 27.6 lbs (12.5 kg) |
| Marca | Hikvision |
|---|---|
| MPN: | DS-9632NI-I16 |
