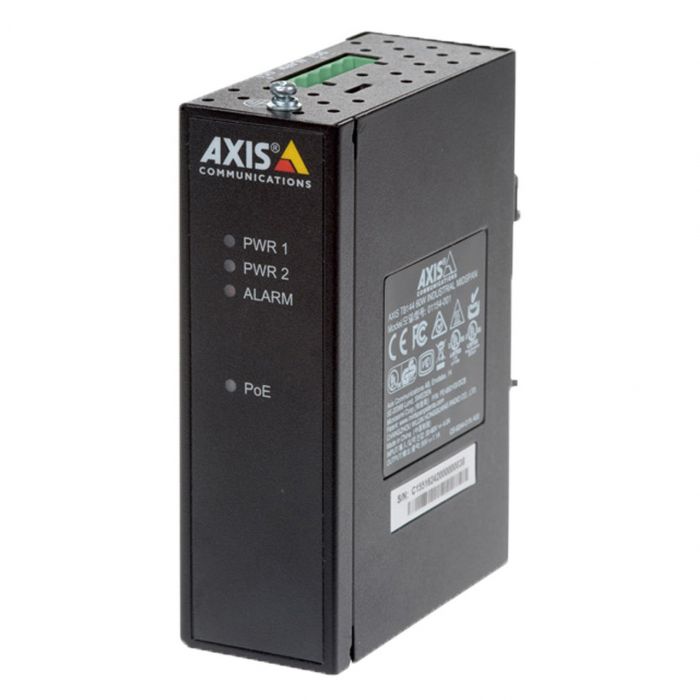

Axis 01154-001 t8144 60w industrial midspan
Precio especial $6,423.00 IVA incluido + Envio $150 MXN
Antes $7,451.00
Disponible 0 Pzas
Antes $7,451.00
Disponible 0 Pzas
Agotado
pub
MX0000077845
Description
AXIS T8144 60 W Industrial Midspan is an industrial grade 1-port midspan offering an easy, fast and cost-effective solution for powering network products. With a wide operating temperature, from -40 °C to 75 °C (-40 °F to 167 °F), AXIS T8144 is robust in harsh environments. A typical configuration would be to enable PoE to a non-PoE based system (switch, 3G/4G router, or wi-fi access point) creating a compact and effective solution.
AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.
AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.
Specifications
Networking | |
---|---|
Power over Ethernet (PoE) | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet interface type | Gigabit Ethernet |
Features | |
Wall mountable | Yes |
Product colour | Black |
Rack mounting | Yes |
Safety | EC/EN/UL 62368 - 1, UL 508 EMC EN 550 24, EN 55032 Class A, FCC P art 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, ICES - 003 Class A, EAC Environment IEC 60068 - 2 - 6, IEC 60068 - 2 - 27, IEC 60068 - 2 - 32 |
LED indicators | Alarm,PoE,Power |
Ports & interfaces | |
DC-in jack | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Power | |
Output power | 60 W |
Power consumption (max) | 72 W |
AC adapter output voltage | 55 V |
Input voltage | 20 - 60 V |
Operational conditions | |
Storage temperature (T-T) | -40 - 85 °C |
Operating temperature (T-T) | -40 - 75 °C |
Operating temperature (T-T) | -40 - 167 °F |
Operating relative humidity (H-H) | 0 - 95% |
Operating altitude | -1574.8 - 7283.5' (-40 - 185 m) |
Weight & dimensions | |
Weight | 11.1 oz (315 g) |
Dimensions (WxDxH) | 3.07 x 1.42 x 4.37' (78 x 36 x 111 mm) |
Packaging content | |
Quick installation guide | Yes |
Number of products included | 1 pcs |
Marca | Axis |
---|---|
MPN: | 01154-001 |
