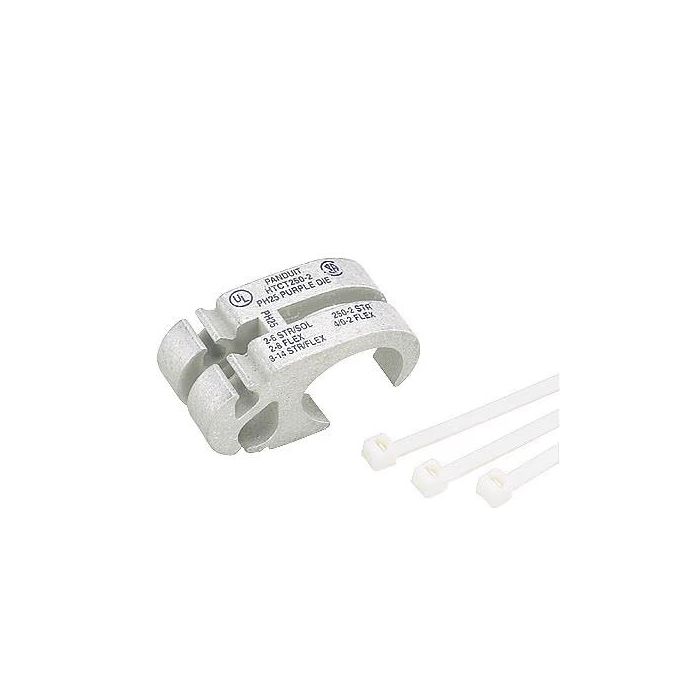

PANDUIT HTCT250-2-1 Conector de Compresión para Hacer Derivaciones de Cables Espacios de 250 Kcmil a 2 AWG 2 a 6 AWG y 8 a 4 AWG
Precio especial $195.00 IVA incluido + Envio $150 MXN
Antes $226.00
Disponible 5 Pzas
Antes $226.00
Disponible 5 Pzas
sku: HTCT250-2-1
pub
MX0000077796-1
HTCT250-2-1
The HTCT250-2-1 Compression Connector Tap Used to tap into continuous conductors as a splice or pig tailing. Each HTAP terminates a wide range of conductor sizes and combinations of code and flex conductors Class G, H, I, and Diesel Locomotive to suit a variety of applications. The slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties. Meets cULus and CSA Certified for applications up to 600 V.
The HTCT250-2-1 Compression Connector Tap Used to tap into continuous conductors as a splice or pig tailing. Each HTAP terminates a wide range of conductor sizes and combinations of code and flex conductors Class G, H, I, and Diesel Locomotive to suit a variety of applications. The slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties. Meets cULus and CSA Certified for applications up to 600 V.
Especificaciones
| Submarca | StructuredGround |
| Longitud total (in) | 0.92 |
| Longitud total (mm) | 23.4 |
| Anchura total (in) | 0.96 |
| Anchura total (mm) | 24.4 |
| Altura total (in) | 1.92 |
| Altura total (mm) | 48.8 |
| Tamaño máximo de conector 1 (AWG) | 2 |
| Tamaño mínimo de conector 1 (AWG) | 8 |
| Tamaño máximo de conector 2 (AWG) | 8 |
| Tamaño mínimo de conector 2 (AWG) | 14 |
| Longitud de la banda del cable (in) | 1 |
| Longitud de la banda del cable (mm) | 25 |
| Número de índice de matriz Panduit | PH25 |
| Código de color | Purple |
| Cumple las normas | cULus listed, CSA certified |
| Aplicación | Telecom/Data Center |
| Tipo de producto | Compression Tap |
| Caracts. pza. | Slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties included |
Detalles del empaque
| Cant. Pq. Est.. | 1 |
| Volumen Pq. Est. (cf) | 0.0002 |
| Cant. Ct. Est. | 100 |
| Volumen Pq. Est. (cf) | 0.0214 |
| Marca | Panduit |
|---|---|
| MPN: | HTCT250-2-1 |
