Axis 0515-001 m3007-pv
Precio especial $35,996.00 IVA incluido + Envio $150 MXN
Antes $41,755.00
Disponible 0 Pzas
Antes $41,755.00
Disponible 0 Pzas
Agotado
pub
MX0000076998

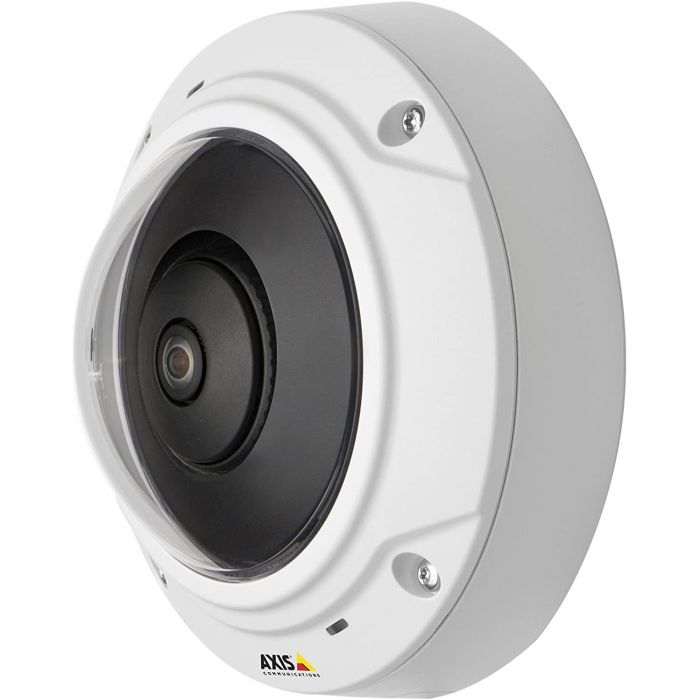

M3007-PV Compact Indoor Fixed Mini Dome Camera, Vandal-resistant Casing, 360º/180º Panoramic Views, Quad and Digital PTZ Views. Up to 5MP at 12 fps
Descripción
This part has been discontinued by the supplier. Use AXE 903538 as suggested replacement.
Compact, indoor fixed mini dome with dust- and vandal-resistant casing, offering 360/180 panoramic views as well as quad and digital PTZ views. Easy mounting on wall or ceiling. Multiple, individually configurable H.264 and Motion JPEG streams in up to 5MP resolution at 12 fps. MicroSD/microSDHC memory card slot for optional local video storage. Video motion detection and active tampering alarm. Comes with a 2 m (6.6 ft.) network cable and is powered using Power over Ethernet. Midspan not included.
Especificaciones:
| Form Factor | DOME |
|---|---|
| PoE | NO |
Axis Communications M3007-PV Specs
| Camera | |
| Image Sensor | 1/3.2' progressive-scan RGB CMOS |
| Lens | 1.3mm fixed |
| Aperture | f/2.8 |
| Iris | Fixed |
| Lens Mount | M12 mount |
| Field of View | Horizontal: 187° Vertical: 168° |
| Light Sensitivity | 0.6 to 200000 lux at f/2.8 |
| Shutter Time | 1/24000 to 2 seconds |
| Angle Adjustment | Rotate: ±180° |
Video
| Compression | H.264 Baseline and Main Profile (MPEG-4 Part 10/AVC), MJPEG |
| Resolutions | Overview: 2592 x 1944 to 160 x 120 Panorama: 1920 x 720 to 320 x 120 Double Panorama: 1920 x 1440 to 160 x 120 Quad View: 1920 x 1440 to 160 x 120 View Area 1-4: 1920 x 1440 to 160 x 90 |
| Frame Rate | 12 fps in 360° overview and panoramic views |
| Streaming | Multiple, individually configurable streams in H.264 and MJPEG Controllable frame rate and bandwidth VBR/CBR H.264 |
| Multi-View Streaming | 360° overview, dewarped panorama, double panorama, and quad views Up to 4 individually cropped out and dewarped view areas When streaming 4 dewarped view areas and one 360° overview in VGA resolution, the frame rate is 10 fps per stream |
| PTZ | Digital PTZ of view areas, Preset positions, Guard tour Digital PT of panorama, Double panorama and quad views |
| Image Settings | Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Backlight compensation, Wide dynamic range - dynamic contrast, Text and image overlay, Mirroring of images, Privacy mask Exposure zones, Fine-tuning of low light behavior, Rotation: 0°, 180° |
Network
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized certificate management |
| Supported Protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
System Integration
| Application Programming Interface | Open API for software integration, including VAPIX and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S |
| Analytics | Video motion detection, Active tampering alarm AXIS cross line detection, AXIS digital autotracking and 3rd party applications Support for AXIS Camera Application Platform, enabling installation of additional applications |
| Event Trigger | Analytics, Edge storage events |
| Event Action | File Upload: FTP, SFTP, and HTTP network share and email Notification: email, HTTP, and TCP Video recording to edge storage Pre- and post-alarm video buffering |
| Data Streaming | Event data |
| Built-In Installation Aids | Pixel counter |
General
| Casing | IP42-rated water- and dust-resistant, IK08-rated impact-resistant Aluminum and polycarbonate / ABS casing Encapsulated electronics, captive screws (resistorx 10) PVC free |
| Memory | 512 MB RAM, 128 MB Flash |
| Power | Power Over Ethernet IEEE 802.3af/802.3at Type 1, Class 2 4.6 W (max) |
| Connectors | Male RJ45 for 10BASE-T/100BASE-TX PoE on 6.6' / 2 m network cable |
| Storage | microSD/SDHC/SDXC slot supports edge storage Support for recording to dedicated network-attached storage (NAS) |
| Operating Conditions | 32 to 113°F / 0 to 45°C |
| Humidity | 15 to 85% RH (non-condensing) |
| VMS Software | AXIS Camera Companion, AXIS Camera Station, Video management software from AXIS' Application Development Partners |
| Approvals | EN 55022 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B, KCC KN22 Class B, KN24, IEC/EN/UL 60950-1 IEC/EN 60529 IP42, IEC/EN 62262 Class IK08 |
| Languages | German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese |
| Dimensions | Ø4 x 2.6' / Ø131.0 x 65.0 mm |
| Weight | 1.3 lb / 590 g |
Packaging Info
| Package Weight | 2.1 lb |
| Box Dimensions (LxWxH) | 7.7 x 6 x 5.2' |
| Marca | Axis |
|---|---|
| MPN: | 0515-001 |
