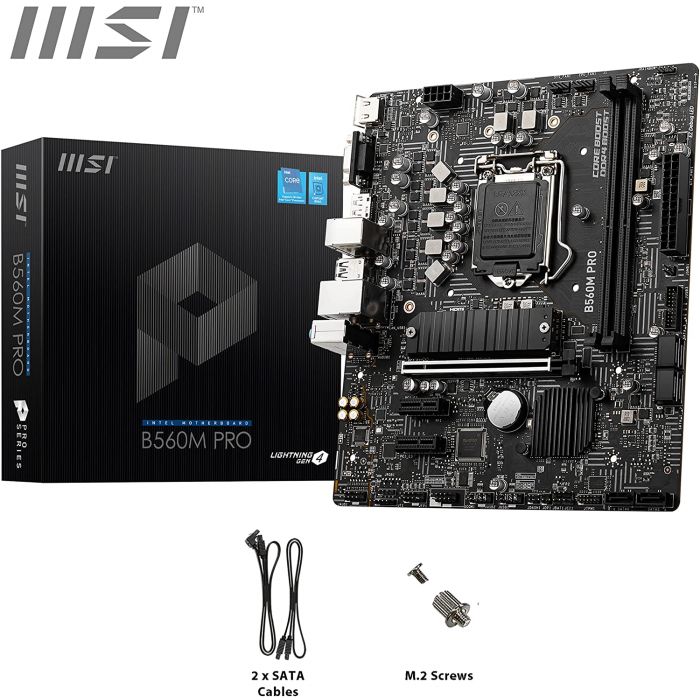

Msi B560MPRO-E b560m pro-e - placa base micro atx
Precio especial $2,087.00 IVA incluido + Envio $150 MXN
Antes $2,421.00
Disponible 0 Pzas
Antes $2,421.00
Disponible 0 Pzas
Agotado
pub
MX0000076291
Socket LGA1200
B560 Chipset
USB 3.2 Gen 1
Gigabit LAN
Tarjeta gráfica (CPU necesaria)
HD Audio (8-canales)
Description
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. FROZR AI COOLING Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. LOW LATENCY GAMING LAN POWERED BY INTEL® Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays. LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Total number of SATA connectors | 6 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2,SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 6 |
| Number of EATX power connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Number of displays supported | 3 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 |
| Serial port headers | 1 |
| Parallel processing technology support | Not supported |
| On-board graphics adapter | Yes |
| HDMI version | 2.0b |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Total number of SATA connectors | 6 |
| Number of mounting holes | 6 |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 |
| Windows operating systems supported | Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1200 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2666,2933,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA |
| Number of storage drives supported | 7 |
| Graphics | |
| Number of displays supported | 3 |
| Parallel processing technology support | Not supported |
| On-board graphics adapter | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8125B |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Number of mounting holes | 6 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 |
| Windows operating systems supported | Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 slots | 1 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| DirectX version | 12.0 |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Yes |
| Weight & dimensions | |
| Width | 9.29' (236 mm) |
| Depth | 7.95' (202 mm) |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Marca | Msi |
|---|---|
| MPN: | B560MPRO-E |
