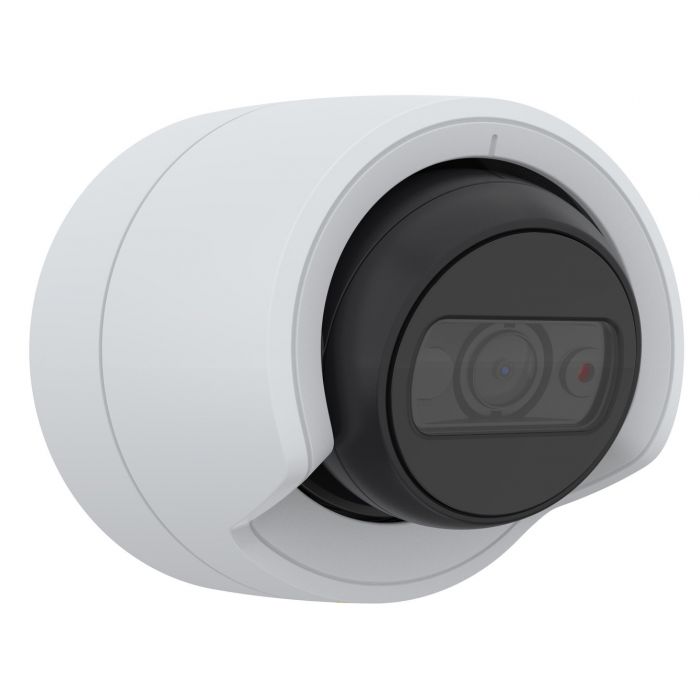

Axis 01605-001 m3116-lve - cámara de vigilancia red panorámico inclinación
Precio especial $13,816.00 IVA incluido + Envio $150 MXN
Antes $16,027.00
Disponible 7 Pzas
Antes $16,027.00
Disponible 7 Pzas
sku: 01605-001
pub
MX0000075645
Description
AXIS M3116-LVE is an affordable, flat-faced dome that offers 4 MP video and an excellent wide-angle view. This compact and discreet camera includes IR illumination for sharp video even in challenging light or complete darkness. It’s ideal for surveillance in a wide range of locations, including hotels, restaurants, retail stores, and offices. Smooth, sharp video AXIS M3116-LVE offers excellent 4 MP resolution at up to 30 fps to deliver clear, sharp video of moving objects. It features Axis Forensic WDR which preserves forensic detail when there are both light and dark areas in a scene. And Axis Lightfinder technology for increased light sensitivity and clear colors in low light. It’s perfect for monitoring inside and outside of various premises where there’s often poor light conditions. Light up the night This flat-faced dome is designed to suppress light reflections and deliver excellent image quality and usability. It offers a wide-angle view of 130°, and with built-in IR illumination you’ll enjoy clear, reflection-free footage in low light or complete darkness and vibrant colors during the day. So, there’s no need for extra lighting- you get unobtrusive surveillance both day and night. Fits in anywhere AXIS M3116-LVE offers flexible and reliable installation. It’s suitable for both indoor and outdoor surveillance and can be mounted on walls or ceilings. Kits are also available for mounting on pendants or on junction boxes. And, with a 3-axis camera angle adjustment, this compact and discreet flat-faced dome can be easily leveled and directed. Furthermore, the impact-resistant, IK08-rated casing can be re-painted in any color to blend in with specific surroundings. It offers enhanced security features to prevent unauthorized access and safeguard your system. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements. Furthermore, thanks to edge storage you can record directly to an onboard memory card, helping reduce installation and maintenance costs.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Day/night mode | Yes |
| Certification | EN 55024, EN 55032 A, EN 55035, EN 61000-6-1,EN 61000-6-2, FCC 15 B A, KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, ICES-3(A)/NMB-3(A), VCCI A IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068-2-6, IEC 60068-2-27 IEC/EN 62262 IK08, IEC/EN 60529 IP66, NEMA 250 4X IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471 NIST SP500-267, IPv6 USGv6 |
| Design | |
| IK code | IK08 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66 |
| Camera | |
| Viewing angle, horizontal | 130° |
| Viewing angle, vertical | 72° |
| Tilt angle range | 0 - 60° |
| Pan range | -180 - 180° |
| Angle of rotation | 190° |
| Camera shutter speed | 1/33500 - 1/5 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 1/2.7' |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2.1 |
| Fixed focus | Yes |
| Fixed focal length | 0.0945' (2.4 mm) |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVC,H.264,H.265,HEVC,M-JPEG |
| Maximum resolution | 2688 x 1512 pixels |
| Supported graphics resolutions | 320 x 240,2688 x 1512 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, SIP, LLDP |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Hard drive | |
| Built-in HDD | No |
| Technical details | |
| Video compression formats | AVC,H.264,H.265,HEVC,M-JPEG |
| Type | IP security camera |
| Form factor | Dome |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Day/night mode | Yes |
| Progressive scan | Yes |
| Security | |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 8.7 W |
| Power consumption (typical) | 4.6 W |
| Certificates | |
| International Protection (IP) code | IP66 |
| Certification | EN 55024, EN 55032 A, EN 55035, EN 61000-6-1,EN 61000-6-2, FCC 15 B A, KC KN32 A, KC KN35, RCM AS/NZS CISPR 32 A, ICES-3(A)/NMB-3(A), VCCI A IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068-2-6, IEC 60068-2-27 IEC/EN 62262 IK08, IEC/EN 60529 IP66, NEMA 250 4X IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471 NIST SP500-267, IPv6 USGv6 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 3.7' (94 mm) |
| Diameter | 3.98' (10.1 cm) |
| Weight | 13.8 oz (390 g) |
| Packaging content | |
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
| Video compression formats | AVC,H.264,H.265,HEVC,M-JPEG |
| Marca | Axis |
|---|---|
| MPN: | 01605-001 |
