Trendnet TPE-5240WS - pz switch gigabit web smart poe+ de 52 puertos
Precio especial $15,666.00 IVA incluido + Envio $150 MXN
Antes $18,173.00
Disponible 0 Pzas
Antes $18,173.00
Disponible 0 Pzas
Agotado
pub
MX0000075588
Description

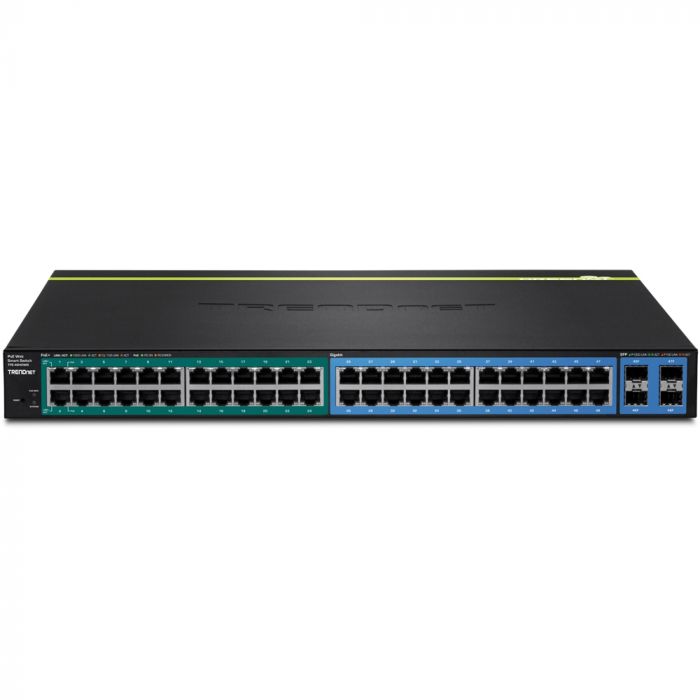

TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch, model TPE-5240WS, delivers advanced management features with a 104Gbps switching capacity. This rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring make this a powerful solution for SMB networks. The TPE-5240WS provides 48 gigabit PoE+ ports with a total power budget of 370W, and four shared gigabit ports (RJ-45 or SFP). The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.
Web Smart Management
Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
PoE Power
A 370W PoE power budget supplies power to PoE/PoE+ devices.
Web Smart Management
Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.
Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.
PoE Power
A 370W PoE power budget supplies power to PoE/PoE+ devices.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | Yes |
| Networking | |
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 256 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Private VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Multicast MAC address table | 256 entries |
| Number of VLANs | 256 |
| Jumbo frames | 10000 |
| Throughput | 77.4 Mpps |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Maximum data transfer rate | 2000 Mbit/s |
| Noise level | 52.4 dB |
| Mean time between failures (MTBF) | 239897 h |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Noise level | 52.4 dB |
| Mean time between failures (MTBF) | 239897 h |
| Housing material | Metal |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Security | |
| Security algorithms | 802.1x RADIUS |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast MAC address table | 256 entries |
| Multicast support | Yes |
| Protocols | |
| Management protocols | HTTP/HTTPS (SSL v2/3 TLS), SNMP v1, v2c, v3, RMON v1, IPv6 |
| Certificates | |
| Certification | CE, FCC |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | CE, FCC |
| Rack mounting | Yes |
| Number of fans | 3 fan(s) |
| Indication | |
| LED indicators | Yes |
| System requirements | |
| Compatible operating systems | Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server |
| Power | |
| Power consumption (max) | 479 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 370 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 17.3' (440 mm) |
| Depth | 16.9' (430 mm) |
| Height | 1.73' (44 mm) |
| Weight | 13.5 lbs (6.12 kg) |
| Packaging data | |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| Resource CD | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Marca | Trendnet |
|---|---|
| MPN: | TPE-5240WS |
