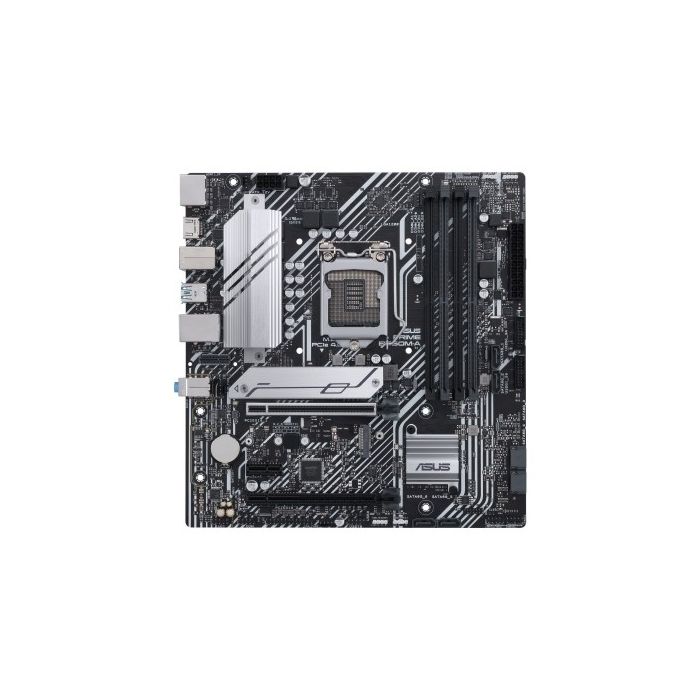

Asus B560M-A motherboard prime -
Precio especial $2,806.00 IVA incluido + Envio $150 MXN
Antes $3,255.00
Disponible 0 Pzas
Antes $3,255.00
Disponible 0 Pzas
Agotado
pub
MX0000074042
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| 12V power connector | Yes |
| Supported storage drive interfaces | SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of SATA III connectors | 6 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Number of displays supported | 2 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 |
| HDMI version | 2.0 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Number of mounting holes | 6 |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 |
| Windows operating systems supported | Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core i5, Intel Core i7, Intel Core i9 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1200 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200,3333,3466,3600,3733,4000,4266,4400,4600,4800,5000 MHz |
| Maximum internal memory | 128 GB |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | SATA |
| Number of storage drives supported | 8 |
| Graphics | |
| Number of displays supported | 2 |
| Maximum resolution | 4096 x 2304 pixels |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I219-V |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Number of mounting holes | 6 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 |
| Windows operating systems supported | Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Weight & dimensions | |
| Width | 9.61' (244 mm) |
| Depth | 9.21' (234 mm) |
| Marca | Asus |
|---|---|
| MPN: | B560M-A |
