Axis 0321-004 p8221 interface cards adapter
Precio especial $10,645.00 IVA incluido + Envio $150 MXN
Antes $12,348.00
Disponible 0 Pzas
Antes $12,348.00
Disponible 0 Pzas
Agotado
pub
MX0000073960
Network IO and audio module Eight digital ports configurable as inputs or outputs Two-way audio configurable to simplex half or full duplex Built-in pre-amp phantom power and gain control for a balanced microphone Line and speaker output Serial port RS-232422485 Power over Ethernet enabled Includes power supply
Description

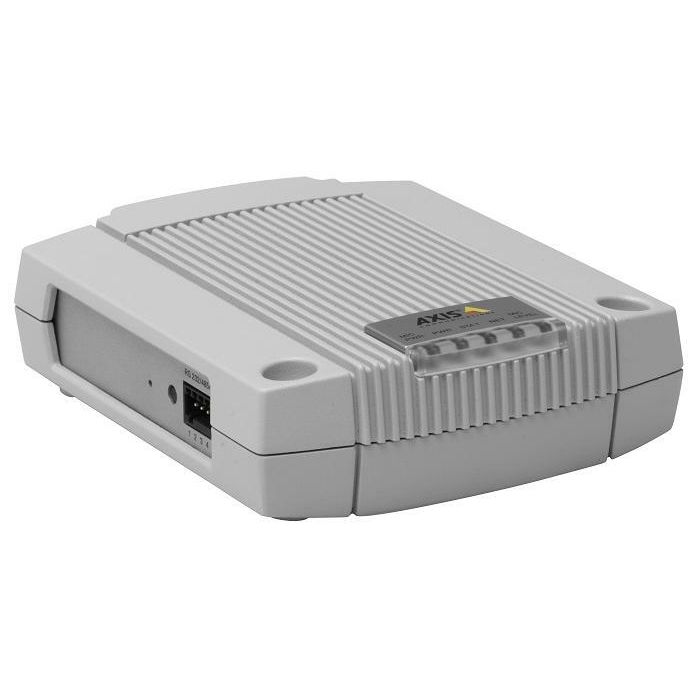

AXIS P8221 Network I/O Audio Module provides eight configurable input/output (I/O) ports and audio capabilities to a network video system that either does not have such support or require additional support. AXIS P8221 complements Axis network video products and integrates easily into existing network video installations using VAPIX®. Sensors such as a door switch, smoke detector, IR detector or glass break detector—used for triggering an alarm event—can be connected as inputs. Output ports can be connected to control devices or relays, for instance, to open/close doors or turn on/off lights upon alarm. AXIS P8221 supports two-way audio in half or full duplex. It has a built-in low power amplifier for small speakers so there is no need for an external preamplifier. It also has phantom power for a balanced microphone. AXIS P8221 has support for Power over Ethernet allowing easy, cost-efficient and reliable installation.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | No |
| Serial interface type | RS-232,RS-422/485 |
| Serial ports quantity | 2 |
| Host interface | Parallel |
| Technical details | |
| Plug and Play | Yes |
| Purpose | Server |
| Supports EPP and ECP | No |
| Full duplex | Yes |
| Flash memory | 128 MB |
| Data transfer rate (max) | 0.1 Gbit/s |
| Bidirectional | Yes |
| Supported protocols | IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Performance | |
| Plug and Play | Yes |
| Purpose | Server |
| Supports EPP and ECP | No |
| Full duplex | Yes |
| Data transfer rate (max) | 0.1 Gbit/s |
| Product colour | White |
| Bidirectional | Yes |
| Supported protocols | IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Certificates | |
| Certification | EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, EN 0950-1 Power supply PS-T: EN 60950-1, CSA, C/US |
| Colour | |
| Product colour | White |
| Design | |
| Purpose | Server |
| Internal | No |
| Product colour | White |
| Certification | EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22, EN 0950-1 Power supply PS-T: EN 60950-1, CSA, C/US |
| Features | |
| Plug and Play | Yes |
| Supports EPP and ECP | No |
| Full duplex | Yes |
| Data transfer rate (max) | 0.1 Gbit/s |
| Bidirectional | Yes |
| Supported protocols | IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Power | |
| Power supply type | DC |
| Power consumption (typical) | 8.2 W |
| Output voltage | 8, 13.7, 20, 24, 34 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | No |
| Minimum RAM | 64 MB |
| Weight & dimensions | |
| Width | 99 mm |
| Depth | 118 mm |
| Height | 32 mm |
| Weight | 335 g |
| Packaging data | |
| User guide | Yes |
| Other features | |
| Connectivity technology | Wired |
| Flash memory | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Compatible operating systems | Windows XP, Vista, 2000, Server 2003 |
| Packaging content | |
| User guide | Yes |
| Marca | Axis |
|---|---|
| MPN: | 0321-004 |
