Cooler Master MFY-B2DN-203PA-R1 ventilador mf120 prismatic 3in1 rgb

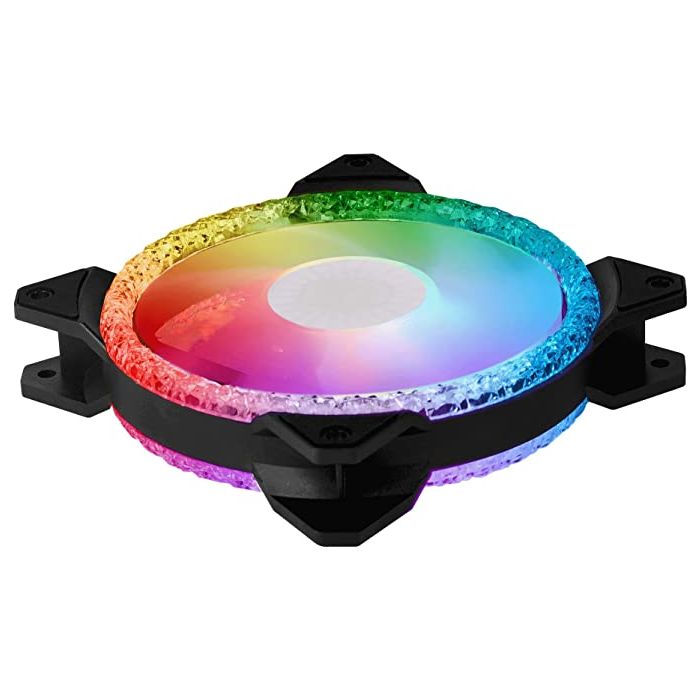

MASTERFAN MF120 PRISMATIC 3 IN 1
CRYSTAL CLEAR PERFORMANCE
- Radiant Crystalline Light
- Tri-Loop Addressable Gen 2 RGB
- Silent Driver IC
- Optimized Air Flow
- Certified Compatibility

RADIANT CRYSTALLINE LIGHTING
Cooler Master is introducing a brand new product to the MasterFan family - MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.

The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.

Addressable Gen 2 RGB
Compatible with...
- Asus Aura Sync
- MSI Mystic Light Sync
- ASRock Polychrome Sync
- Gigabyte RGB Fusion

CERTIFIED COMPATIBILITY
Certified compatibility with Asus Aura, ASRock RGB, MSI RGB and Gigabyte RGB Fusion Motherboards.

TRI-LOOP ADDRESSABLE GEN 2 RGB
24 Addressable Gen 2 RGB LEDs are uniformly arranged around the crystalized loop design with an additional 6 Addressable LEDs on the fan hub.

RADIANT CRYSTALLINE LIGHTING EFFECT
Unique crystallized loop design on both sides of the fan provide maximum light dispersion of the addressable RGB.

SILENT DRIVER IC AND COOLING TECHNOLOGY
Silent Driver IC with noise reduction technology offers smooth rotation reduced vibration and fan noise delivering quiet performance even at the highest loads.

HIGHLY OPTIMIZED P/Q PERFORMANCE FOR ALL APPLICATIONS
The MF120 Prismatic features redesigned fan blades producing a pressure to airflow (P/Q) curve that exceeds previous generation performance.

Optimized P/Q curve for all applications such as on heatsinks and watercooling radiators or airflow-oriented applications such as case cooling.

ADDRESSABLE GEN 2 RGB CONTROLLER
Included Addressable Gen 2 RGB Controller works with Cooler Master's MasterPlus+ software customizing each individual LED on color, effect, brightness and more - all from an intuitive, convenient interface.

SECURE CONNECTION
Includes Addressable RGB connector clips to ensure a secure connection

CRYSTAL CLEAR PERFORMANCE
Cooler Master is introducing a brand new product to the MasterFan family - MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.

SMALL SIMPLE VERSATILE
Granting you the versatility to easily personalize your devices delivered to you in a small compact size.

Model Number
MFY-B2DN-203PA-R1

Fan Profile
Addressable Gen 2 RGB

Fan Bearing Type
Rifle Bearing

Fan Speed
650-2000 RPM ± 5%

Fan Airflow
55 CFM (Max)

Fan Air Pressure
2.91 mmH2O (Max)

Fan Noise Level
8 - 27 dBA

Fan Dimensions ( L x W x H )
120 x 120 x 25 mm

Fan MTFB
160,000 Hours

RGB Connector
3-Pin ARGB

RGB Rated Voltage
5V DC

RGB Rated Current
0.65A

Fan Rated Voltage
12VDC

Fan Rated Current
0.12A

Fan Safety Current
0.37A

Fan Power Consumption
1.44W

Fan Power Connector
4-Pin (PWM)

Fan Weight
153g

Cooler Type
Case Fan

Series
MasterFan

Fan Size
120mm

LED Lighting
ARGB
