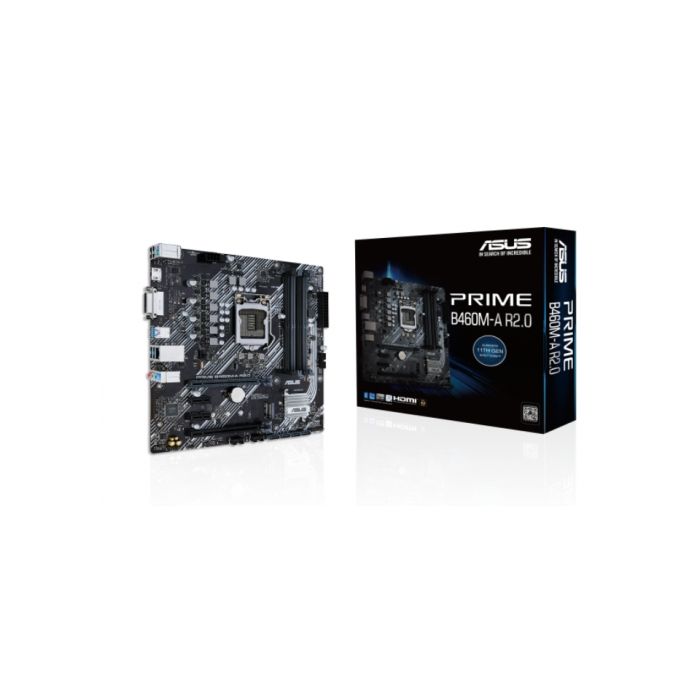

Asus PRIME B460M-A R2.0 mb h470 intel s-1200 11a gen 4x ddr4 2666 dvi-d hdmi m.2 usb 3.2 micro atx gama media

TARJETA MADRE INTEL® H470 (LGA 1200) MICRO ATX CON PCIE® 4.0, 8 FASES DE PODER, HDMI®, DVI, SATA 6GBPS, USB FRONTAL 3.2 GEN 1, INTEL® 1 GB ETHERNET, INTEL® OPTANE MEMORY READY, ASUS OPTIMEM, FAN XPERT, ARMORY CRATE Y 5X PROTECCIÓN III
SOCKET INTEL® LGA 1200: LISTO PARA PROCESADORES INTEL® CORE? DE AND #8203; AND #8203;11.ª Y 10.ª GENERACIóN.
SOLUCIóN DE POTENCIA MEJORADA: 8 FASES DE PODER, CHOKES DE ALEACIóN Y CONDENSADORES DURADEROS PARA UNA ENTREGA DE POTENCIA ESTABLE.
REFRIGERACIóN COMPLETA: DISIPADOR DE PCH, PUERTOS DE VENTILADOR HíBRIDOS Y FAN XPERT.
ASUS OPTIMEM: ENRUTAMIENTO CUIDADOSO DE TRAZAS Y VíAS PARA PRESERVAR LA INTEGRIDAD DE LA SEñAL PARA MEJORAR LA ESTABILIDAD DE LA MEMORIA.
CONECTIVIDAD ULTRARRáPIDA: PCIE® 4.0, INTEL® ETHERNET DE 1 GB, USB FRONTAL 3.2 GEN 1.

INTEL® SOCKET LGA1200 FOR 11TH GEN INTEL® CORE? PROCESSORS AND 10TH GEN INTEL® CORE?, PENTIUM® GOLD AND CELERON® PROCESSORS
SUPPORTS INTEL® 14 NM CPU
SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0**
* REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST.
** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES.

CHIPSET
INTEL® H470 CHIPSET

MEMORIA
CANALES DE MEMORIA:4DDR4 (DUAL CHANNEL)
MEMORIA MáXIMA:128GB
4 X DIMM, MAX. 128GB, DDR4 2933/2800/2666/2400/2133 MHZ NON-ECC, UN-BUFFERED MEMORY*
DUAL CHANNEL MEMORY ARCHITECTURE
SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP)
OPTIMEM
* 10TH GEN INTEL® CORE? I7/I9 PROCESSORS SUPPORT 2933/2800/2666/2400/2133 NATIVELY, OTHERS WILL RUN AT THE MAXIMUM TRANSFER RATE OF DDR4 2666MHZ.
* 11TH GEN INTEL® PROCESSORS SUPPORT 2933/2800/2666/2400/2133 NATIVELY.
* REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS), AND MEMORY FREQUENCY SUPPORT DEPENDS ON THE CPU TYPES.

GRáFICOS
1 X DVI-D
* GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES.
** ONLY INTEL® 11TH GEN PROCESSORS SUPPORT HDMI? 2.0 WITH MAX. RESOLUTION OF 4K@60HZ, OTHERS WILL ONLY SUPPORT HDMI? 1.4 WITH MAX. RESOLUTION OF 4K@30HZ .PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES.

RANURAS DE EXPANSIóN
INTEL® 11TH AND 10TH GEN PROCESSORS*
1 X PCIE 4.0/3.0 X16 SLOT
- INTEL®11TH GEN PROCESSORS SUPPORT PCIE 4.0 X16 MODE
- INTEL®10TH GEN PROCESSORS SUPPORT PCIE 3.0 X16 MODE

INTEL® H470 CHIPSET
1 X PCIE 3.0 X16 SLOT (SUPPORTS X4 MODE)
2 X PCIE 3.0 X1 SLOTS

ALMACENAMIENTO
SUPPORTS 1 X M.2 SLOT AND 4 X SATA 6GB/S PORTS
INTEL® H470 CHIPSET
M.2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 3.0 X4 AND SATA MODES)
4 X SATA 6GB/S PORTS
INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS RAID 0,1,5,10
INTEL® OPTANE? MEMORY READY

ETHERNET
1 X INTEL® I219-V 1GB ETHERNET
ASUS LANGUARD
USB
USB TRASERO:TOTAL 6 PORTS
4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A)
2 X USB 2.0 PORTS (2 X TYPE-A)
USB FRONTAL:FRONT USB PORT ( TOTAL 6 )
1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS

AUDIO
REALTEK ALC887/897 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC*
- SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING
- SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK

AUDIO FEATURES
- AUDIO SHIELDING
- LED-ILLUMINATED AUDIO TRACE PATH DESIGN
- PREMIUM JAPANESE AUDIO CAPACITORS
- DEDICATED AUDIO PCB LAYERS
* A CHASSIS WITH AN HD AUDIO MODULE IN THE FRONT PANEL IS REQUIRED TO SUPPORT 7.1 SURROUND SOUND AUDIO OUTPUT.

PUERTOS E/S TRASEROS
4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A)
2 X USB 2.0 PORTS (2 X TYPE-A)
1 X DVI-D PORT
1 X HDMI PORT
1 X INTEL® I219V 1GB ETHERNET
3 X AUDIO JACKS
1 X PS/2 KEYBOARD/MOUSE COMBO PORT

PUERTOS INTERNOS
FAN AND COOLING RELATED
1 X 4-PIN CPU FAN HEADER
1 X 4-PIN CHASSIS FAN HEADER
POWER RELATED
1 X 24-PIN MAIN POWER CONNECTOR
1 X 8-PIN +12V POWER CONNECTOR

STORAGE RELATED
1 X M.2 SLOT (KEY M)
4 X SATA 6GB/S PORTS

USB
1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS

MISCELLANEOUS
1 X CLEAR CMOS HEADER
1 X FRONT PANEL AUDIO HEADER (AAFP)
1 X S/PDIF OUT HEADER
1 X SPI TPM HEADER (14-1PIN)
1 X 20-3 PIN SYSTEM PANEL HEADER WITH CHASSIS INTRUDE FUNCTION

FUNCIONES ESPECIALES DE ASUS
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGUARD
- OVERVOLTAGE PROTECTION
- SAFESLOT CORE
- STAINLESS-STEEL BACK I/O

ASUS Q-DESIGN
- ASUS Q-DIMM
- ASUS Q-SLOT

SOFTWARE
ASUS EXCLUSIVE SOFTWARE
ARMOURY CRATE

AI SUITE 3
- PERFORMANCE AND POWER SAVING UTILITY

TURBOV EVO
EPU
DIGI+ VRM
FAN XPERT
- EZ UPDATE
ASUS CPU-Z
NORTON ANTI-VIRUS SOFTWARE (FREE TRIAL VERSION)
DAEMON TOOLS
WINRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CRASHFREE BIOS 3
- ASUS EZ FLASH 3
- ASUS UEFI BIOS EZ MODE

BIOS
192 (128+64) MB FLASH ROM, UEFI AMI BIOS
MANEJABILIDAD
WOL BY PME, PXE
ACCESORIOS
CABLES
2 X SATA 6GB/S CABLES
MISCELLANEOUS
1 X I/O SHIELD
1 X M.2 SSD SCREW PACKAGE
INSTALLATION MEDIA
1 X SUPPORT DVD

DOCUMENTATION
1 X USER MANUAL

SISTEMA OPERATIVO
WINDOWS 10 64 BIT
FACTOR DE FORMA
MATX
9.6 INCH X 9.6 INCH ( 24.4 CM X 24.4 CM )
