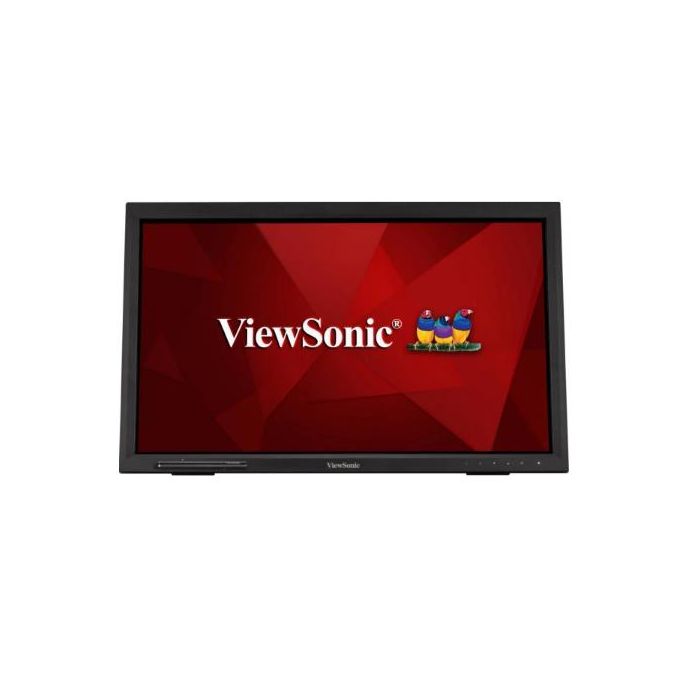

Viewsonic TD2223 monitor led touch infrarrojo 22 full hd 1920 x 1080 negro vga hdmi usb-a 10 puntos tactiles
Precio especial $6,463.00 IVA incluido + Envio $150 MXN
Antes $7,497.00
Disponible 1 Pzas
Antes $7,497.00
Disponible 1 Pzas
sku: TD2223
pub
MX0000073474
-
Description
The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity. Intuitive Multi-touch Experience An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe. Operating System Support This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi. Simple and Safer Way to Interact This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base. Anti-scratch Touchscreen With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects. Adjustable Tilt This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone. Clear Images This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents. Dual Integrated Speakers With built-in 2-watt speakers, this monitor provides you a better audiovisual experience. Enhanced Viewing Comfort This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Specifications
| Display | |
|---|---|
| Response time | 5 ms |
| Display diagonal | 21.5' |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Display number of colours | 16.78 million colors |
| Display technology | LED |
| High frequency rate | 75 Hz |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Vertical scan range | 50 - 75 Hz |
| Touchscreen technology | Infrared |
| Pixel pitch | 0.00976 x 0.00976' (0.248 x 0.248 mm) |
| Horizontal scan range | 24 - 82 kHz |
| Display resolution | 1920 x 1080 pixels |
| Contrast ratio (dynamic) | 20000000:1 |
| Native aspect ratio | 16:9 |
| Panel type | TN |
| HD type | Full HD |
| Design | |
| Glass thickness | 0.0787' (2 mm) |
| Product colour | Black |
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Performance | |
| Touchscreen type | Multi-user |
| Touch technology | Multi-touch |
| Number of speakers | 2 |
| Built-in camera | No |
| Built-in microphone | No |
| Touchscreen technology | Infrared |
| RMS rated power | 4 W |
| Number of simultaneous touchpoints | 10 |
| Built-in speaker(s) | Yes |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| HDMI | Yes |
| Built-in USB hub | Yes |
| DVI port | Yes |
| HDMI version | 1.4 |
| Microphone in | Yes |
| Headphone out | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| Tilt angle range | 22 - 38° |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tiltable | Yes |
| Power | |
| Power consumption (max) | 14 W |
| Power supply type | AC |
| Power consumption (typical) | 12.5 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Certificates | |
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, REACH, RoHS |
| Weight & dimensions | |
| Height (with stand) | 13.1' (334 mm) |
| Depth (with stand) | 3.98' (101 mm) |
| Width (with stand) | 20.5' (521 mm) |
| Weight (with stand) | 9.92 lbs (4.5 kg) |
| Width (without stand) | 20.5' (52.1 cm) |
| Depth (without stand) | 2.4' (6.1 cm) |
| Height (without stand) | 12.5' (31.8 cm) |
| Weight (without stand) | 8.6 lbs (3.9 kg) |
| Packaging data | |
| Package width | 22.8' (580 mm) |
| Package depth | 6.46' (164 mm) |
| Package height | 15.9' (405 mm) |
| Package weight | 13.2 lbs (6 kg) |
| Stand included | Yes |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Stand included | Yes |
| Technical details | |
| Sustainability certificates | ENERGY STAR, REACH, RoHS |
| Other features | |
| Height (with stand) | 13.1' (334 mm) |
| Depth (with stand) | 3.98' (101 mm) |
| Marca | Viewsonic |
|---|---|
| MPN: | TD2223 |
