Elo E329825 2494l 238-inch wide fhd lcd wva (led backlight) open frame hdmi vga & display port video interface intellitouch plus dual touch usb controller ww clear no power brick
Precio especial $18,828.00 IVA incluido + Envio $150 MXN
Antes $21,840.00
Disponible 0 Pzas
Antes $21,840.00
Disponible 0 Pzas
Agotado
pub
MX0000073376
Description

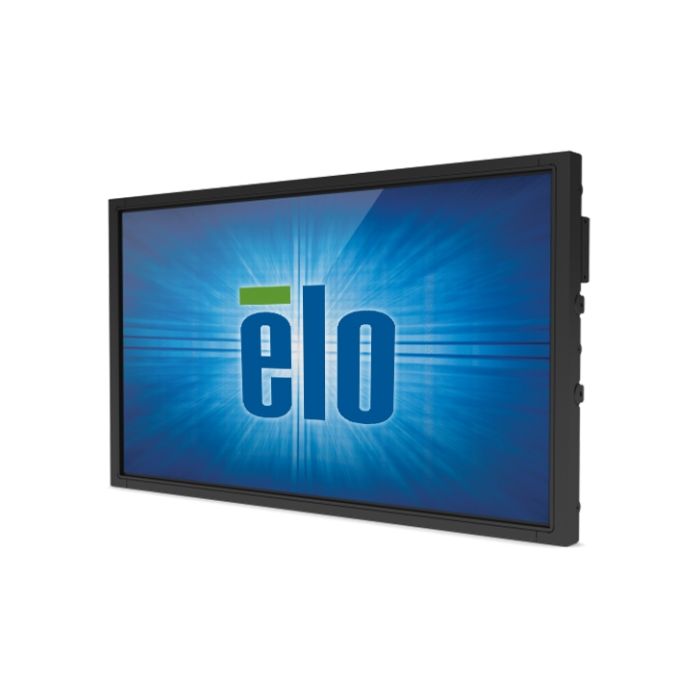

The Elo 2494L 24-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2494L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. Touch ready. Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® surface acoustic wave (SAW) with single- and dual-touch, IntelliTouch single-touch SAW with zero-bezel, and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
| Display | |
|---|---|
| Response time | 16 ms |
| Display diagonal | 23.8' |
| Display brightness | 225 cd/m² |
| Contrast ratio (typical) | 3000:1 |
| Display number of colours | 16.78 million colors |
| Display technology | LCD/TFT |
| High frequency rate | 60 Hz |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Vertical scan range | 50 - 75 Hz |
| Touchscreen technology | Surface acoustic wave |
| LED backlight | Yes |
| Horizontal scan range | 30 - 82 kHz |
| Full HD | Yes |
| Display viewable area (HxV) | 20.7 x 11.7' (527 x 296.5 mm) |
| Display resolution | 1920 x 1080 pixels |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 82 kHz |
| Backlight type | LED |
| Aspect ratio | 16:9 |
| HD type | Full HD |
| Design | |
| Product colour | Black |
| Performance | |
| Touchscreen type | Kiosk |
| Touch technology | Dual-touch |
| Built-in camera | No |
| Touchscreen technology | Surface acoustic wave |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| Panel mounting interface | 200 x 100 mm |
| VESA mounting | Yes |
| Power | |
| Power supply type | DC |
| Power consumption (typical) | 23.7 W |
| Power consumption (off) | 0.5 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Weight (without stand) | 14.1 lbs (6.39 kg) |
| Packaging data | |
| Package width | 27.2' (692 mm) |
| Package depth | 7.48' (190 mm) |
| Package height | 17.8' (452 mm) |
| Package weight | 19.3 lbs (8.75 kg) |
| Other features | |
| Full HD | Yes |
| Marca | Otros |
|---|---|
| MPN: | E329825 |
