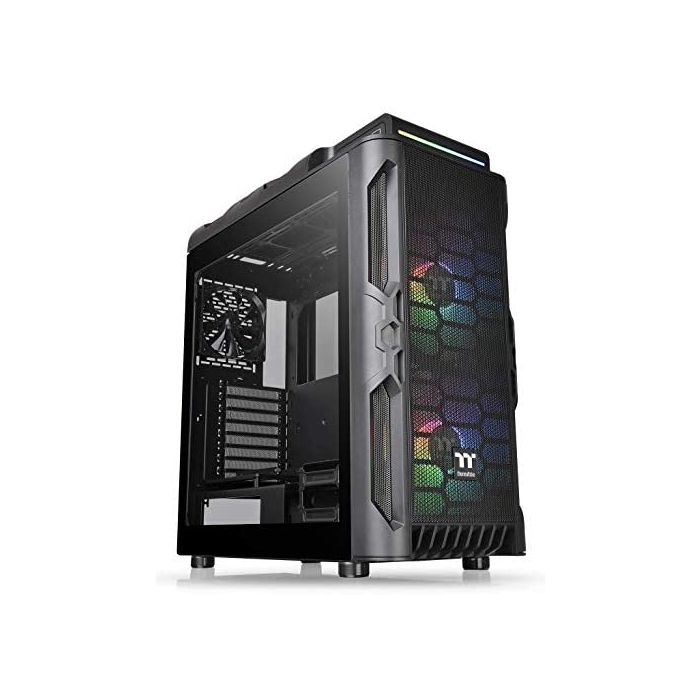

Thermaltake CA-1P8-00M1WN-00 gabinete level 20 rs negro media torre mini itx, micro atx, atx cristal templado argb gamer
Antes $4,882.00
Disponible 0 Pzas
LEVEL 20 RS ARGB ES UN CHASIS DE TORRE MEDIA ATX QUE VIENE CON DOS VENTANAS DE VIDRIO TEMPLADO DE 4 MM DE GROSOR Y DOS VENTILADORES FRONTALES ARGB DE 5V DE 200 MM PREINSTALADOS Y UN VENTILADOR TRASERO ESTÁNDAR DE 120 MM.
P / N CA-1P8-00M1WN-00
LA SERIE NIVEL 20
MODELO NIVEL 20 RS ARGB
TIPO MEDIA TORRE
DIMENSIÓN (AL X AN X PR) 524 X 240,8 X 553 MM
(20,62 X 9,4 X 21,77 PULGADAS)
PESO NETO 12,23 KG / 26,96 LIBRAS
PANEL LATERAL VIDRIO TEMPLADO DE 4 MM X 2
COLOR EXTERIOR E INTERIOR: NEGRO
MATERIAL SPCC
SISTEMA DE REFRIGERACIÓN DELANTERO (ENTRADA):
200 X 200 X 30 MM VENTILADOR RGB DIRECCIONABLE
(600 RPM, 29,2 DBA) X 2
TRASERO (ESCAPE):
VENTILADOR DE 120 X 120 X 25 MM
(1000 RPM, 16 DBA)
BAHÍAS DE UNIDAD -
ACCESIBLE - 2.5 ?X 2 O 3.5? X 2 (RACK HDD)
OCULTO 2.5 ?X 1 (SOPORTE HDD); 2,5 X 2 O 3,5 X 1 (SOPORTE DE DISCO DURO)
RANURAS DE EXPANSIÓN 8
PLACAS BASE 6,7 X 6,7 (MINI ITX), 9,6 X 9,6 (MICRO ATX), 12 X 9,6 (ATX)
I / O PORT USB 3.0 X 2, USB 2.0 X 2, AUDIO HD X 1, BOTÓN RGB X 1
FUENTE DE ALIMENTACIÓN PSU PS2 ESTÁNDAR (OPCIONAL)
SOPORTE DEL VENTILADOR FRENTE:
2 X 200 MM O 1 X 200 MM
3 X 120 MM O 2 X 120 MM O 1 X 120 MM
3 X 140 MM O 2 X 140 MM O 1 X 140 MM
SUPERIOR:
2 X 200 MM O 1 X 200 MM
3 X 120 MM O 2 X 120 MM O 1 X 120 MM
2 X 140 MM O 1 X 140 MM
POSTERIOR:
1 X 120 MM
SOPORTE DE RADIADOR DELANTERO:
1 X 360 MM O 1 X 240 MM O 1 X 120 MM
1 X 420 MM O 1 X 280 MM O 1 X 140 MM
SUPERIOR:
1 X 360 MM O 1 X 240 MM O 1 X 120 MM
1 X 280 MM O 1 X 140 MM
POSTERIOR:
1 X 120 MM
MB DERECHA:
1 X PACIFIC DP100-D5 PLUS DISTRO (SIN HDD RACK)
DESPEJE LIMITACIÓN DE LA ALTURA DEL ENFRIADOR DE LA CPU: 172 MM
LIMITACIÓN DE LONGITUD DE VGA: 282 MM (CON BASTIDOR DE HDD)
AND #12288; AND #12288; AND #12288; AND #12288; AND #12288; AND #12288; AND #12288; AND #12288; AND #12288; 400 MM (SIN BASTIDOR DE HDD)
LIMITACIÓN DE LONGITUD DE LA FUENTE DE ALIMENTACIÓN : 220 MM
Ingles
Description
Thermaltake Level 20 RS ARGB Mid Tower Chassis
Inspired by sports cars, the Level 20 RS ARGB has a rising top panel that cleverly hides the I/O ports on its side; The ARGB light bar shown on its front perfectly mimics the afterimage of a car’s tail light. It features two tempered glass panels, ATX motherboard support, patented PCI-E slot design and a removable power cover. The Level 20 RS ARGB comes with two preinstalled 200mm 5V ARGB front fans and one 120mm standard rear fan. The front fans are addressable to deliver 16.8 million-color RGB illumination and unparalleled ventilation. By choosing Thermaltake Level 20 RS ARGB, users can experience the best liquid cooling expansion and advanced cable management. Get ready for your race by choosing the new Level 20 RS ARGB. The Level 20 RS ARGB takes our latest case innovations and wraps them in an ultra-modern and sports style that’s utterly unique in the case market today. Stand out from the crowd with the Level 20 RS.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
We’ve Got You Covered
Preinstalled with two 200mm 5V ARGB front fans with featured hydraulic bearings, 9 addressable LEDs and 16.8 million-color illumination which guarantees high airflow and custom system lighting to show off your PC build skills. The 5V ARGB fans can be controlled by using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and ASRock official websites.
Tempered Glass Panels
The 4mm tempered glass window on both sides of the Level 20 RS ARGB are built to be more durable, scratch resistant, and transparent for an advanced view of your hardware.
PSU Cover & Riser GPU Support Bracket
The built-in PSU cover contains an overall ventilated design. Optimising airflow, as well as hiding those unsightly cables. The integrated riser GPU support bracket not only prevents the graphics card from sagging, but also helps to reduce the weight on the motherboard’s PCI-E slot.
Display It Your Way
Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, giving you plenty of flexible space for your system.
Dust Reduction
Two super fine fan filters with excellent protection and reduction against dirt on the top and at the front, and one easily removable filter at the bottom.
Opportunities For High-End Expansion
The Level 20 RS ARGB contains outstanding expandability options, allowing you to build the most high-end system you can dream of. It can support a CPU cooler with a maximum height of 172mm, dual expansion slot GPUs of up to 400mm in length (without a HDD rack), and a power supply with a length of up to 220mm. Furthermore, the Level 20 RS ARGB has been optimized with excellent cooling capabilities, with two 200mm 5V ARGB exhaust front fans and one 120mm standard rear fan, both comes pre-installed. The case is able to house up to three 140mm or two 200mm front fans, up to three 120mm fans on top, and a radiator up to 360mm on top, at the front, or on the right.
Modern I/O Ports
The I/O ports feature two USB 3.0, two USB 2.0 data transfer ports, and an RGB button for direct access. Able to provide direct access to multiple high-priority ports, makes accessing external hard drives and plugging in headphones a breeze.
Specifications
Design | |
---|---|
Tempered glass panel thickness | 0.157' (4 mm) |
Material | Steel |
Number of 3.5' bays | 3 |
Number of 2.5' bays | 1 |
Supported motherboard form factors | ATX,Micro ATX,Mini-ITX |
Side window | Yes |
LED indicators | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Product colour | Black |
Number of expansion slots | 8 |
Maximum CPU cooler height | 6.77' (17.2 cm) |
Maximum graphics card length | 15.7' (40 cm) |
Maximum PSU length | 8.66' (22 cm) |
Type | PC |
Form factor | Midi Tower |
On/off button | Yes |
Tempered glass panel(s) | Yes |
Technical details | |
Number of 3.5' bays | 3 |
Number of 2.5' bays | 1 |
Supported motherboard form factors | ATX,Micro ATX,Mini-ITX |
Supported HDD sizes | 2.5,3.5' |
Side window | Yes |
Product colour | Black |
Number of expansion slots | 8 |
Maximum CPU cooler height | 6.77' (17.2 cm) |
Maximum graphics card length | 15.7' (40 cm) |
Maximum PSU length | 8.66' (22 cm) |
Type | PC |
Form factor | Midi Tower |
Material | |
Material | Steel |
Indication | |
LED indicators | Yes |
Illumination location | Case fans |
Illumination colour | Multi |
Illumination | Yes |
Ergonomics | |
LED indicators | Yes |
On/off button | Yes |
Power supply | |
Supported power supply form factors | PS2 |
Power supply included | No |
Ports & interfaces | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Audio input | Yes |
Audio output | Yes |
USB 2.0 ports quantity | 2 |
Cooling | |
Front radiator fan sizes supported | 280,360 mm |
Rear radiator fan sizes supported | 120 mm |
Top radiator fan sizes supported | 280,360 mm |
Front fans installed | 2x 200 mm |
Number of front fans supported (max) | 3 |
Front fans diameters supported | 120,140,200 mm |
Rear fans installed | 1x 120 mm |
Number of rear fans supported (max) | 1 |
Rear fans diameters supported | 120 mm |
Number of top fans supported (max) | 3 |
Top fans diameters supported | 120,140,200 mm |
Storage | |
HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5' |
Weight & dimensions | |
Width | 9.48' (240.8 mm) |
Depth | 20.6' (524 mm) |
Height | 21.8' (553 mm) |
Weight | 26.9 lbs (12.2 kg) |
Tempered glass panel thickness | 0.157' (4 mm) |
Other features | |
Tempered glass panel thickness | 0.157' (4 mm) |
Marca | Thermaltake |
---|---|
MPN: | CA-1P8-00M1WN-00 |
