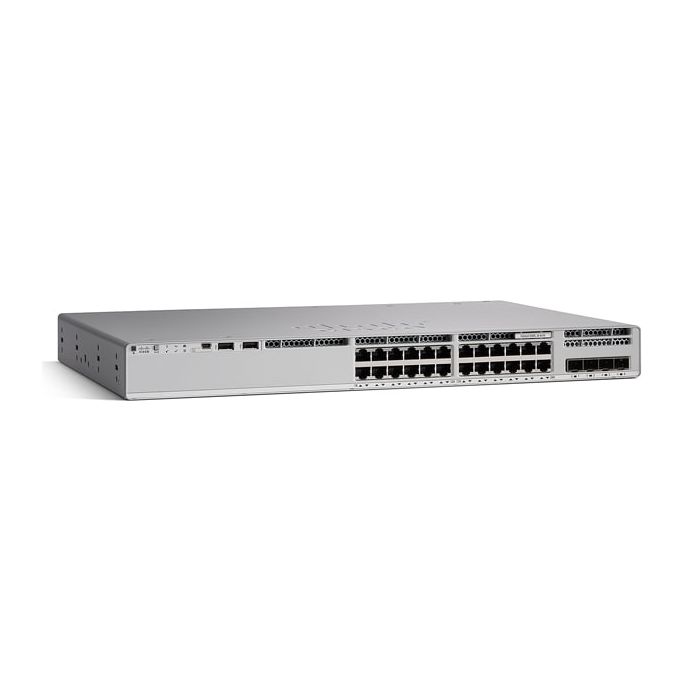

Cisco C9200-24T-E catalyst 9200 24-port data only network essentials
Precio especial $39,723.00 IVA incluido + Envio $150 MXN
Antes $46,079.00
Disponible 0 Pzas
Antes $46,079.00
Disponible 0 Pzas
Agotado
pub
MX0000070985
S
Español
Conmutador de nivel 3 Cisco Catalyst C9200-24T 24 Puertos Gestionable - 3 Capa compatible - Par trenzado
Especificaciones técnicas
Gestión y protocolos
| Gestionable | Sí |
Redes y Comunicaciones
| Compatibilidad con nivel | 3 |
Descripción de la Alimentación
| Fuente de Corriente | Fuente de alimentación |
| Fuente de alimentación redundante admitido | Sí |
Información General
| Tipo de Producto | Conmutador de nivel 3 |
| Código de Fabricante | C9200-24T-E |
| Dirección Web de Fabricante | http:www.cisco.com |
| Fabricante | Cisco Systems, Inc |
| Modelo de Producto | C9200-24T |
| Nombre de Producto | Conmutador de nivel 3 Catalyst C9200-24T |
| Línea de Producto | Catalyst |
| Gama de Producto | 9200 |
| Nombre de Marca | Cisco |
Formato / Prestaciones
| Tecnología de Red | 10/100/1000Base-T |
| Tecnología Ethernet | Gigabit Ethernet |
| Tipo de Medio Compatible | Par trenzado |
Interfaces/Puertos
| Número de Puertos Puerto de Vínculo Superior | Sí |
| Puertos de Apilamiento | Sí |
| Número Total de Puertos de Red | 24 |
Características Físicas
| Peso (Aproximado) | 4.35kg |
| Altura | 43.9mm |
| Anchura | 444.5mm |
| Profundidad |
350.5mm |
Ingles
Description
Extend Intent-Based Networking Everywhere Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified. As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey. Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations. With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Power connector | AC-in jack |
| Network | |
| IPv4 multicast entries | 8000 |
| Copper ethernet cabling technology | 10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 3000 |
| Number of VLANs | 4096 |
| IP routing | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4096 |
| Data transmission | |
| Multicast MAC address table | 1000 entries |
| Number of VLANs | 4096 |
| Packet forwarding rate (1 Gbps) | 95.23 pps |
| Jumbo frames | 9198 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 95.23 Mpps |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Power | |
| Power connector | AC-in jack |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Input current | 12 - 6 A |
| Technical details | |
| Product colour | Gray |
| Security | |
| Security algorithms | 128-bit AES |
| Access Control List (ACL) | Yes |
| Multicast features | |
| Multicast MAC address table | 1000 entries |
| Multicast support | Yes |
| IPv4 multicast entries | 8000 |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3 |
| Routing protocols | CDP,EIGRP,OSPF,RIP,VRRP |
| Certificates | |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Memory type | DRAM |
| Internal memory | 4000 MB |
| Flash memory | 4000 MB |
| Design | |
| Product colour | Gray |
| Electromagnetic compatibility | 47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 118110.2' (0 - 3000 m) |
| Weight & dimensions | |
| Width | 17.5' (445 mm) |
| Depth | 13.8' (350 mm) |
| Height | 1.73' (44 mm) |
| Weight | 11 lbs (5 kg) |
| Packaging data | |
| Package type | Box |
| Marca | Cisco |
|---|---|
| MPN: | C9200-24T-E |
