Crucial CT25664BD160B memoria dimm ddr3 (CT25664BD160B) 2gb 1600mhz pc3-12800 135v cl11
Precio especial $366.00 IVA incluido + Envio $150 MXN
Antes $425.00
Disponible 0 Pzas
Antes $425.00
Disponible 0 Pzas
Agotado
pub
MX0000070984
Description
Crucial 240-pin DIMMs are used in DDR3 memory for desktop computers. DDR3 is the latest generation of memory with an improved architecture that allows it to transmit data more quickly.

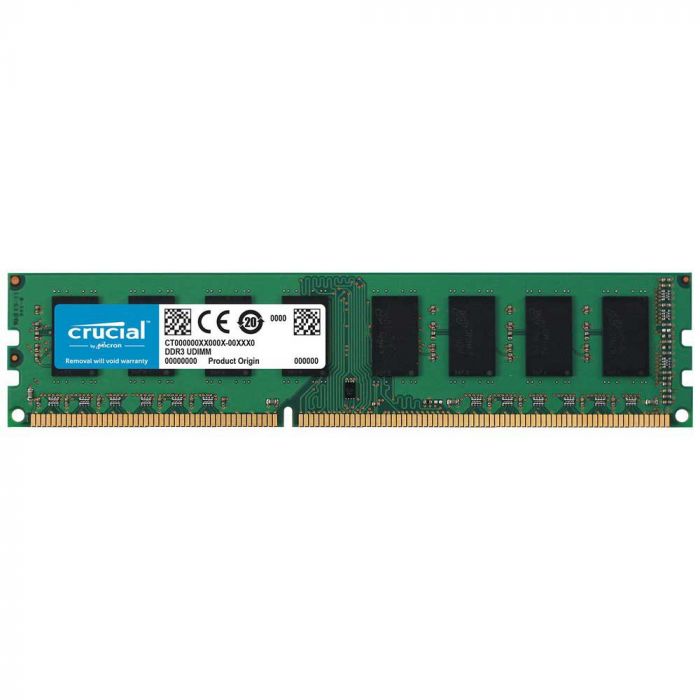

A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.
Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules). (The Ballistix™ and Ballistix Tracer™ high-performance memory do not come in 72-bit or registered modules.) Standard DDR3 240-pin DIMMs are currently available in PC3-8500 (DDR3 1066MHz) and PC3-10600 (DDR3 1333MHz) speeds. Additional speeds will be added as the technology becomes available.
To use DDR3 memory, your system motherboard must have 240-pin DIMM slots and a DDR3-enabled chipset. This is because a DDR3 SDRAM DIMM will not fit into a standard DDR2 DIMM socket or a DDR DIMM socket.
The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240. 240-pin DIMMs are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR3 DIMMS, 240-pin DDR2 DIMMs, 184-pin DDR DIMMs, and 168-pin DIMMs are approximately the same size, 240-pin DIMMs and 184-pin DIMMs have only one notch within the row of pins.
A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.
Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules). (The Ballistix™ and Ballistix Tracer™ high-performance memory do not come in 72-bit or registered modules.) Standard DDR3 240-pin DIMMs are currently available in PC3-8500 (DDR3 1066MHz) and PC3-10600 (DDR3 1333MHz) speeds. Additional speeds will be added as the technology becomes available.
To use DDR3 memory, your system motherboard must have 240-pin DIMM slots and a DDR3-enabled chipset. This is because a DDR3 SDRAM DIMM will not fit into a standard DDR2 DIMM socket or a DDR DIMM socket.
The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240. 240-pin DIMMs are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR3 DIMMS, 240-pin DDR2 DIMMs, 184-pin DDR DIMMs, and 168-pin DIMMs are approximately the same size, 240-pin DIMMs and 184-pin DIMMs have only one notch within the row of pins.
Specifications
| Memory | |
|---|---|
| Package type | DIMM |
| Buffered memory type | Unregistered (unbuffered) |
| Memory layout (modules x size) | 1 x 2 GB |
| Internal memory | 2 GB |
| Component for | PC/server |
| Memory form factor | 240-pin DIMM |
| CAS latency | 11 |
| Memory voltage | 1.35 V |
| Module configuration | 256M x 64 |
| Memory type | PC3-12800 |
| ECC | No |
| Memory clock speed | 1600 MHz |
| Internal memory type | DDR3 |
| Power | |
| Memory voltage | 1.35 V |
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| Memory layout (modules x size) | 1 x 2 GB |
| Internal memory | 2 GB |
| Component for | PC/server |
| Memory form factor | 240-pin DIMM |
| CAS latency | 11 |
| Memory voltage | 1.35 V |
| Module configuration | 256M x 64 |
| Memory type | PC3-12800 |
| ECC | No |
| Memory clock speed | 1600 MHz |
| Internal memory type | DDR3 |
| Weight & dimensions | |
| Package type | DIMM |
| Packaging data | |
| Package type | DIMM |
| Marca | Crucial |
|---|---|
| MPN: | CT25664BD160B |
