Otros E326942 elo touch 1790l 17-inch lcd (led backlight) open frame hdmi vga & display port video interface intellitouch usb rs232 controller worldwide-version anti-glare no power brick
Precio especial $14,502.00 IVA incluido + Envio $150 MXN
Antes $16,822.00
Disponible 1 Pzas
Antes $16,822.00
Disponible 1 Pzas
sku: E326942
pub
MX0000069991
Description

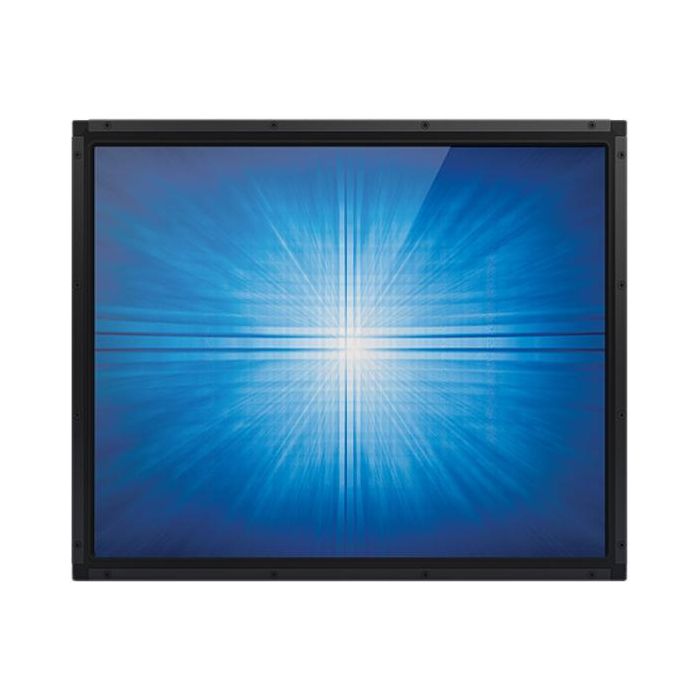

The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments. Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. Touch ready. The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW. Commercial-grade. The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
| Display | |
|---|---|
| Display number of colours | 16.78 million colors |
| Display technology | LCD/TFT |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Vertical scan range | 50 - 75 Hz |
| Touchscreen technology | Surface acoustic wave |
| LED backlight | Yes |
| Horizontal scan range | 30 - 82 kHz |
| Full HD | No |
| Display viewable area (HxV) | 13.3 x 10.6' (337.9 x 270.3 mm) |
| Display resolution | 1280 x 1024 pixels |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 82 kHz |
| Backlight type | LED |
| Aspect ratio | 5:4 |
| Display diagonal | 17' |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 225 cd/m² |
| Response time | 5 ms |
| Native aspect ratio | 5:4 |
| Design | |
| Product colour | Black |
| Performance | |
| Touch technology | Single-touch |
| Built-in camera | No |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Touchscreen type | Kiosk |
| Touchscreen technology | Surface acoustic wave |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Power | |
| Power consumption (off) | 0.5 W |
| Power supply type | DC |
| Power consumption (typical) | 17.8 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Technical details | |
| Touchscreen type | Kiosk |
| Power supply type | DC |
| Package weight | 12.3 lbs (5.6 kg) |
| Sustainability certificates | RoHS |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Colour | |
| Product colour | Black |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight (without stand) | 7.94 lbs (3.6 kg) |
| Packaging data | |
| Package width | 18.7' (476 mm) |
| Package depth | 7.2' (183 mm) |
| Package height | 16.5' (418 mm) |
| Package weight | 12.3 lbs (5.6 kg) |
| Other features | |
| Full HD | No |
| Marca | Otros |
|---|---|
| MPN: | E326942 |
