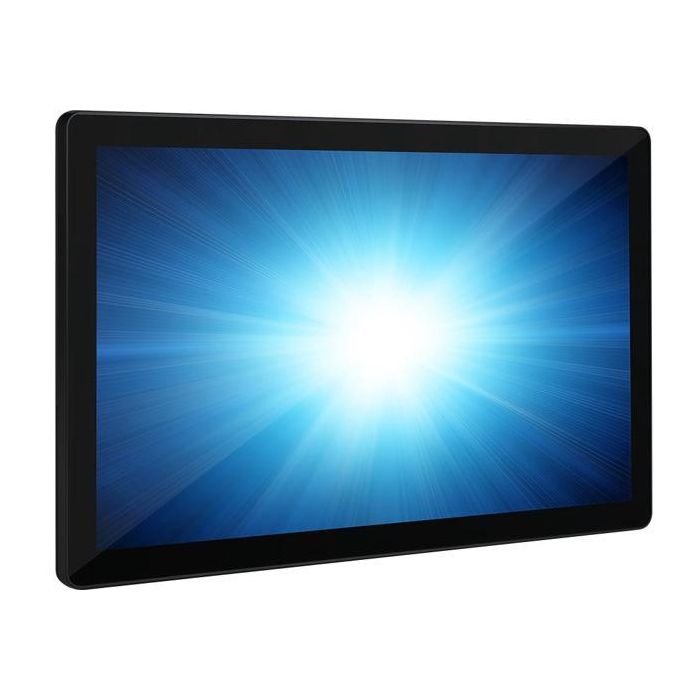

Otros E850591 elo touch i-series 20 windows 10 215-inch wide full hd core i3 projected capacitive 10-touch clear wi-fi ethernet bluetooth 50 black ww
Precio especial $40,416.00 IVA incluido + Envio $150 MXN
Antes $46,883.00
Disponible 2 Pzas
Antes $46,883.00
Disponible 2 Pzas
sku: E850591
pub
MX0000069976
Description
I-Series for Windows Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor. Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited. Endless Versatility The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use. Configure with Elo Edge Connect Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change. Stands & Mounts With a standard VESA mount, we give you the flexibility to mount our products however you want. Windows or Linux. You Choose. Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them. Get Peace of Mind With EloCare EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Specifications
| Display | |
|---|---|
| Detachable display | No |
| Screen shape | Flat |
| HD type | Full HD |
| Display number of colours | 16.78 million colors |
| Display diagonal | 21.5' |
| Display resolution | 1920 x 1080 pixels |
| LED backlight | Yes |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Display brightness | 225 cd/m² |
| 3D | No |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Processor | |
| Stepping | B0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Coffee Lake |
| Bus type | DMI3 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Tjunction | 82 °C |
| Thermal Design Power (TDP) | 35 W |
| Processor code | SR3Y8 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Maximum number of PCI Express lanes | 16 |
| Configurable TDP-down | 25 W |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Yes |
| Processor cache type | Smart Cache |
| Configurable TDP-down frequency | 2.4 GHz |
| Processor frequency | 3.1 GHz |
| Processor family | 8th gen Intel® Core™ i3 |
| Processor model | i3-8100T |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 6 MB |
| System bus rate | 8 GT/s |
| 64-bit computing | Yes |
| Motherboard chipset | Intel® H310 |
| Processor socket | LGA 1151 (Socket H4) |
| Processor manufacturer | Intel |
| PCI Express slots version | 3.0 |
| Memory | |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Hard drive | |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Storage | |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Card reader integrated | No |
| Compatible memory cards | Not supported |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD form factor | M.2 |
| Total SSDs capacity | 128 GB |
| Graphics | |
| Discrete graphics adapter | No |
| On-board graphics adapter dynamic frequency (max) | 1100 MHz |
| On-board graphics adapter base frequency | 350 MHz |
| Maximum on-board graphics adapter memory | 64 GB |
| On-board graphics adapter OpenGL version | 4.5 |
| On-board graphics adapter DirectX version | 12.0 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics adapter ID | 0x3E91 |
| On-board graphics adapter family | Intel® UHD Graphics |
| On-board graphics adapter 4K support | Yes |
| On-board graphics adapter | Yes |
| Discrete graphics adapter model | Not available |
| On-board graphics adapter model | Intel® UHD Graphics 630 |
| Audio | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Camera | |
| Built-in camera | No |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Processor special features | |
| Processor code | SR3Y8 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Secure Key | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal solution specification | PCG 2015A |
| Thermal Monitoring Technologies | Yes |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| Processor package size | 37.5 x 37.5 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Processor ARK ID | 129944 |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Technical details | |
| Product type | All-in-One tablet PC |
| Intel® Turbo Boost Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Product colour | Black |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Performance | |
| Product type | All-in-One tablet PC |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Operating system installed | Windows 10 |
| Power | |
| AC adapter power | 100 W |
| AC adapter frequency | 50-60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Multimedia | |
| Built-in camera | No |
| Pen | |
| Pen included | No |
| Weight & dimensions | |
| Package width | 24.6' (625 mm) |
| Package depth | 7.72' (196 mm) |
| Package height | 17.2' (437 mm) |
| Package weight | 15.4 lbs (7 kg) |
| Width (with stand) | 20.7' (525.9 mm) |
| Depth (with stand) | 2.07' (52.6 mm) |
| Height (with stand) | 12.6' (319.2 mm) |
| Weight (with stand) | 11.5 lbs (5.2 kg) |
| Packaging data | |
| Package width | 24.6' (625 mm) |
| Package depth | 7.72' (196 mm) |
| Package height | 17.2' (437 mm) |
| Package weight | 15.4 lbs (7 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Other features | |
| Detachable display | No |
| On-board graphics adapter | Yes |
| SSD capacity | 128 GB |
| Processor socket | LGA 1151 (Socket H4) |
| Processor manufacturer | Intel |
| PCI Express slots version | 3.0 |
| Number of SSDs installed | 1 |
| 3D | No |
| Marca | Otros |
|---|---|
| MPN: | E850591 |
