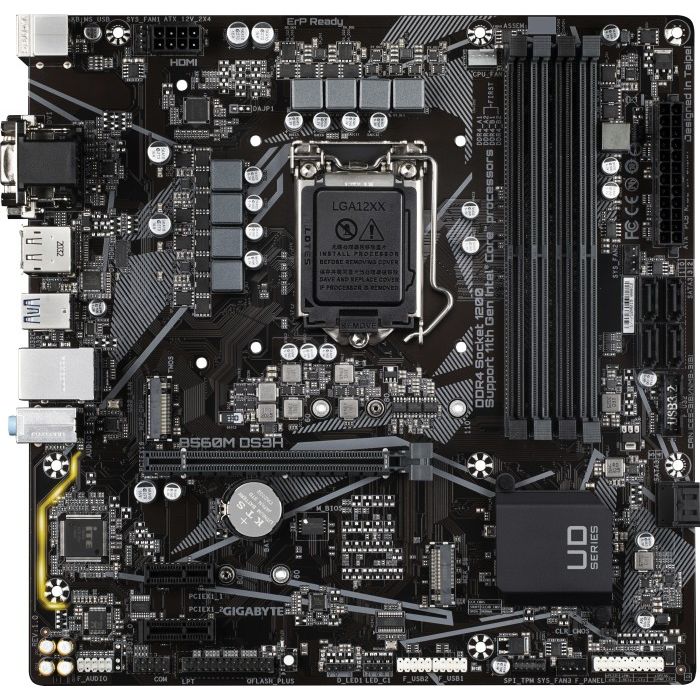

Gigabyte B560M DS3H mb b560 intel s-1200 11gen 4xddr4 2933mhz pcie 4.0 hdmi dvi vga dp 3x usb 3.2 usb-c m.2 micro atx gama media
Precio especial $2,330.00 IVA incluido + Envio $150 MXN
Antes $2,703.00
Disponible 0 Pzas
Antes $2,703.00
Disponible 0 Pzas
Agotado
pub
MX0000069834
CPU
PAQUETE LGA1200:
PROCESADORES INTELCORE I9 DE 11.A GENERACION / PROCESADORES INTELCORE I7 / PROCESADORES INTELCORE I5
PROCESADORES INTELCORE I9 DE DECIMA GENERACION / PROCESADORES INTELCORE I7 / PROCESADORES INTELCORE I5 / PROCESADORES INTELCORE I3 / PROCESADORES INTELPENTIUM/ PROCESADORES INTELCELERON*
* LIMITADO A PROCESADORES CON INTELSMART CACHE DE 4 MB, FAMILIA INTELCELERONG5XX5.
LA CACHE L3 VARIA CON LA CPU
(CONSULTE LA LISTA DE COMPATIBILIDAD DE CPU PARA OBTENER MAS INFORMACION).
CHIPSET
CONJUNTO DE CHIPS INTELB560 EXPRESS
MEMORIA
PROCESADORES INTELCORE I9 / I7 / I5 DE 11.A GENERACION:
SOPORTE PARA DDR4 5333 (OC) / DDR4 5133 (OC) / DDR4 5000 (OC) / 4933 (OC) / 4800 (OC) / 4700 (OC) / 4600 (OC) / 4500 (OC) / 4400 (OC) / 4300 (OC) / 4266 (OC) / 4133 (OC) / 4000 (OC) / 3866 (OC) / 3800 (OC) / 3733 (OC) / 3666 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3300 (OC) / 3200 (OC) / 3000 (OC) / 2933/2800/2666/2400/2133 MHZ
PROCESADORES INTELCORE I9 / I7 DE DECIMA GENERACION:
SOPORTE PARA MODULOS DE MEMORIA DDR4 2933/2666/2400/2133 MHZ
PROCESADORES INTELCORE I5 / I3 / PENTIUM/ CELERONDE DECIMA GENERACION:
SOPORTE PARA MODULOS DE MEMORIA DDR4 2666/2400/2133 MHZ
4 X SOCKETS DDR4 DIMM QUE ADMITEN HASTA 128 GB (CAPACIDAD DE UN SOLO DIMM DE 32 GB) DE MEMORIA DEL SISTEMA
ARQUITECTURA DE MEMORIA DE DOBLE CANAL
COMPATIBILIDAD CON MODULOS DE MEMORIA DIMM 1RX8 / 2RX8 SIN BUFER ECC (FUNCIONAN EN MODO NO ECC)
SOPORTE PARA MODULOS DE MEMORIA DIMM 1RX8 / 2RX8 / 1RX16 SIN BUFER NO ECC
SOPORTE PARA MODULOS DE MEMORIA EXTREME MEMORY PROFILE (XMP)
(VAYA AL SITIO WEB DE GIGABYTE PARA OBTENER LAS ULTIMAS VELOCIDADES DE MEMORIA Y MODULOS DE MEMORIA COMPATIBLES).
GRAFICOS INTEGRADOS
PROCESADOR DE GRAFICOS INTEGRADO: COMPATIBILIDAD CON GRAFICOS INTELHD:
1 X PUERTO D-SUB, QUE ADMITE UNA RESOLUCION MAXIMA DE 1920X1200 A 60 HZ
1 X PUERTO DVI-D, QUE ADMITE UNA RESOLUCION MAXIMA DE 1920X1200 A 60 HZ
* EL PUERTO DVI-D NO ADMITE LA CONEXION D-SUB MEDIANTE ADAPTADOR.
1 X DISPLAYPORT, QUE ADMITE UNA RESOLUCION MAXIMA DE 4096X2304 A 60 HZ
* SOPORTE PARA LA VERSION DISPLAYPORT 1.2 Y HDCP 2.3
* CUANDO EL PUERTO D-SUB Y DISPLAYPORT ESTAN CONECTADOS AL MISMO TIEMPO, LAS IMAGENES SE EMITIRAN SOLO DESDE DISPLAYPORT.
1 X PUERTO HDMI, QUE ADMITE UNA RESOLUCION MAXIMA DE 4096X2160 A 30 HZ
* SOPORTE PARA LA VERSION HDMI 1.4 Y HDCP 2.3.
(LAS ESPECIFICACIONES DE GRAFICOS PUEDEN VARIAR SEGUN EL SOPORTE DE LA CPU).
SOPORTE PARA HASTA 3 PANTALLAS AL MISMO TIEMPO
AUDIO
CODEC DE AUDIO REALTEK
AUDIO DE ALTA DEFINICION
2/4 / 5.1 / 7.1 CANALES
* PARA CONFIGURAR EL AUDIO DE 7.1 CANALES, PRIMERO DEBE ABRIR EL SOFTWARE DE AUDIO Y SELECCIONAR CONFIGURACION AVANZADA DEL DISPOSITIVO DISPOSITIVO DE REPRODUCCION PARA CAMBIAR LA CONFIGURACION PREDETERMINADA.
LAN
CHIP LAN REALTEKGBE (1000/100 MBIT)
RANURAS DE EXPANSION
1 X RANURA PCI EXPRESS X16, FUNCIONANDO A X16
(LA RANURA PCIEX16 CUMPLE CON EL ESTANDAR PCI EXPRESS 4.0.) (NOTA)
2 X RANURAS PCI EXPRESS X1
(LA RANURA PCIEX1 CUMPLE CON EL ESTANDAR PCI EXPRESS 3.0).
INTERFAZ DE ALMACENAMIENTO
CPU
1 X CONECTOR M.2 (SOCKET 3, CLAVE M, TIPO 2260/2280/22110 PCIE 4.0 X4 / X2 SSD COMPATIBLE) (M2P_CPU) (NOTA)
CONJUNTO DE CHIPS:
1 X CONECTOR M.2 (SOCKET 3, CLAVE M, TIPO 2260/2280 SATA Y COMPATIBILIDAD CON SSD PCIE 3.0 X4 / X2) (M2A_SB)
6 X CONECTORES SATA 6GB / S
* CONSULTE 1-7 CONECTORES INTERNOS PARA CONOCER LOS AVISOS DE INSTALACION DE LOS CONECTORES M.2 Y SATA.
PREPARADO PARA MEMORIA INTELOPTANE
* ACELERACION DEL SISTEMA CON MEMORIA INTELOPTANE HABILITADA EN EL CONECTOR M2P_CPU UNICAMENTE.
USB
CONJUNTO DE CHIPS:
1 PUERTO USB TYPE-CEN EL PANEL POSTERIOR, COMPATIBLE CON USB 3.2 GEN 1
5 PUERTOS USB 3.2 GEN 1 (3 PUERTOS EN EL PANEL POSTERIOR, 2 PUERTOS DISPONIBLES A TRAVES DEL ENCABEZADO USB INTERNO)
4 PUERTOS USB 2.0 / 1.1 DISPONIBLES A TRAVES DE LOS ENCABEZADOS USB INTERNOS
CONJUNTO DE CHIPS + CONCENTRADOR USB 2.0:
2 X PUERTOS USB 2.0 / 1.1 EN EL PANEL POSTERIOR
CONECTORES DE E / S INTERNOS
1 CONECTOR DE ALIMENTACION PRINCIPAL ATX DE 24 PINES
1 CONECTOR DE ALIMENTACION ATX 12V DE 8 PINES
1 X CABEZAL DE VENTILADOR DE CPU
3 X ENCABEZADOS DE VENTILADOR DEL SISTEMA
1 X ENCABEZADO DE TIRA DE LED DIRECCIONABLE
1 X ENCABEZADO DE TIRA DE LED RGB
6 X CONECTORES SATA 6GB / S
2 X CONECTORES M.2 SOCKET 3
1 X ENCABEZADO DEL PANEL FRONTAL
1 X ENCABEZADO DE AUDIO DEL PANEL FRONTAL
1 X ENCABEZADO USB 3.2 GEN 1
2 X ENCABEZADOS USB 2.0 / 1.1
1 X ENCABEZADO DEL MODULO DE PLATAFORMA CONFIABLE (SOLO PARA EL MODULO GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0)
1 X ENCABEZADO DE PUERTO SERIE
1 X ENCABEZADO DE PUERTO PARALELO
1 X PUENTE CMOS TRANSPARENTE
1 X BOTON Q-FLASH PLUS
AND #65290; TODOS LOS CABEZALES DE VENTILADOR ESTAN SUJETOS A COMPATIBILIDAD CON AIO_PUMP, PUMP Y VENTILADOR DE ALTO RENDIMIENTO CON LA CAPACIDAD DE ENTREGAR HASTA 2A / 12V @ 24W.
CONECTORES DEL PANEL TRASERO
2 X PUERTOS USB 2.0 / 1.1
1 X PUERTO DE TECLADO / MOUSE PS / 2
1 X PUERTO D-SUB
1 X PUERTO DVI-D
1 X DISPLAYPORT
1 X PUERTO HDMI
3 X PUERTOS USB 3.2 GEN 1
1 PUERTO USB TYPE-C, COMPATIBLE CON USB 3.2 GEN 1
1 X PUERTO RJ-45
3 X CONECTORES DE AUDIO
CONTROLADOR DE E / S
CHIP CONTROLADOR DE E / S ITE
MONITOREO DE H / W
DETECCION DE VOLTAJE
DETECCION DE TEMPERATURA
DETECCION DE VELOCIDAD DEL VENTILADOR
ADVERTENCIA DE FALLA DEL VENTILADOR
CONTROL DE VELOCIDAD DEL VENTILADOR
* LA COMPATIBILIDAD CON LA FUNCION DE CONTROL DE VELOCIDAD DEL VENTILADOR DEPENDERA DEL VENTILADOR QUE INSTALE.
BIOS
1 FLASH DE 256 MBIT
USO DE BIOS UEFI DE AMI CON LICENCIA
PNP 1.0A, DMI 2.7, WFM 2.0, SM BIOS 2.7, ACPI 5.0
CARACTERISTICAS UNICAS
SOPORTE PARA APP CENTER
* LAS APLICACIONES DISPONIBLES EN APP CENTER PUEDEN VARIAR SEGUN EL MODELO DE PLACA BASE. LAS FUNCIONES ADMITIDAS DE CADA APLICACION TAMBIEN PUEDEN VARIAR SEGUN LA ESPECIFICACION DE LA PLACA BASE. NS.
@BIOS
EASYTUNE
ARRANQUE RAPIDO
IMPULSO DEL JUEGO
CARGA ON / OFF
FUSION RGB
COPIA DE SEGURIDAD INTELIGENTE
VISOR DE INFORMACION DEL SISTEMA
SOPORTE PARA Q-FLASH PLUS
SOPORTE PARA Q-FLASH
SOPORTE PARA XPRESS INSTALL
SOFTWARE INCLUIDO
NORTONINTERNET SECURITY (VERSION OEM)
UTILIDAD DE CONTROL DE ANCHO DE BANDA LAN PARA JUEGOS REALTEK8118
SISTEMA OPERATIVO
SOPORTE PARA WINDOWS 10 DE 64 BITS
FACTOR DE FORMA
FACTOR DE FORMA MICRO ATX; 24,4 CM X 24,4 CM
Description
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading. - Digital PWM Controller to deliver appropriate voltage to the CPU. - Direct 6+2Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU. - All-solid capacitors to improve transient response and minimize oscillation. - 8-pin Solid Pin CPU Power Connector. Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface. High Current Support Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection Precision Control Up to 7 temperature/fan speed control points for precise fan curve Dual Curve Mode Slope/Stair dual mode for different user scenario Fan Stop Fan can stop completely below users' specified temperature point Smart Fan 6 BIOS UI Improve fan curve UI We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control. Slope/Stair dual graph mode Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval. Manual Input For advanced users, we provide fan speed manual input for more precise control. EZ Tuning Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve. Fan curve profile Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS. High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Dual PCIe 4.0/3.0 x4 M.2 Connectors GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential. Connecting the Future - USB Type-C® The World's Next Universal Connector Reversible USB Type-C® with USB 3.2 Gen1 The USB Type-C® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.2 Gen1 controller, this little port provides the best USB Type-C® experience possible. RGB FUSION 2.0 With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations. With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come. With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience. GIGABYTE RGB Fusion APP Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC. Solid Pin Power Connectors B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. Solid Pin Power connector advantages - Larger contact area for electricity - More metal quantity to sustain higher power and generated heat - Ultra durable and longer lifespan Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! START SULFURIZATION PROTECTION Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. Refreshed BIOS The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. APP CENTER GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version. EasyTune™ GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most. System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Parallel connector | Yes |
| Number of SATA III connectors | 6 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Number of displays supported | 3 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 Express |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| HDMI version | 1.4 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 Express |
| Windows operating systems supported | Windows 10 x64 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® |
| Supported processor sockets | LGA 1200 (Socket H5) |
| Processor socket | LGA 1200 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of storage drives supported | 8 |
| Graphics | |
| Number of displays supported | 3 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPort version | 1.2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| HDMI version | 1.4 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B560 Express |
| Windows operating systems supported | Windows 10 x64 |
| Supported processor sockets | LGA 1200 (Socket H5) |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Bundled software | Norton Internet Security, Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Weight & dimensions | |
| Width | 9.61' (244 mm) |
| Depth | 9.61' (244 mm) |
| Packaging content | |
| Bundled software | Norton Internet Security, Realtek 8118 Gaming LAN Bandwidth Control Utility |
| Marca | Gigabyte |
|---|---|
| MPN: | B560M DS3H |
