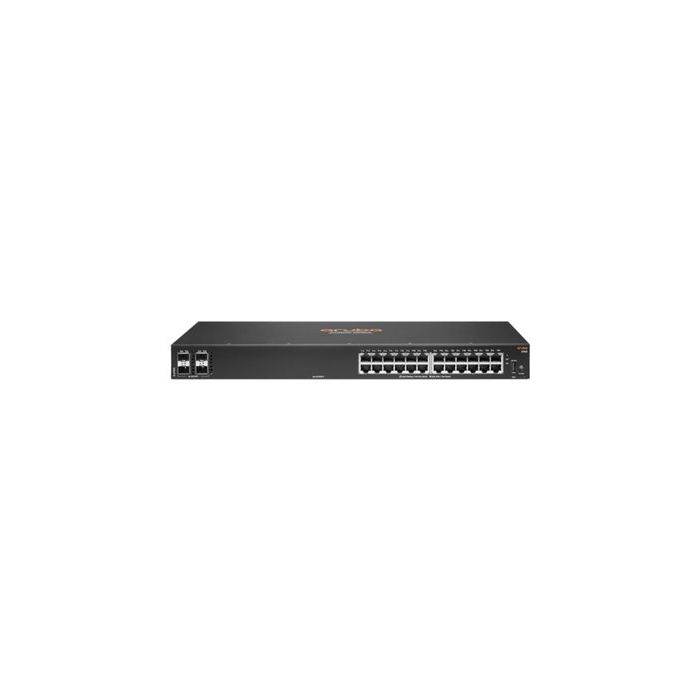

Aruba jl678a 6100 24g 4sfp+ Switch
Precio especial $29,426.00 IVA incluido + Envio $150 MXN
Antes $34,134.00
Disponible 23 Pzas
Antes $34,134.00
Disponible 23 Pzas
sku: JL678A
pub
MX00000069355
Description
Hewlett Packard Enterprise Aruba 6100 24G 4SFP+. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: USB. MAC address table: 8192 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE.... Rack mounting, Form factor: 1U
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Virtual LAN features | |
| VLAN support | Yes |
| Performance | |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Virtual stacking (units) | 16 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Technical details | |
| Virtual stacking (units) | 16 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | USB |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Data transmission | |
| Throughput | 95.2 Mpps |
| Latency (1 Gbps) | 1.5 µs |
| Latency (10 Gbps) | 1.8 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 8192 entries |
| Switching capacity | 128 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | MAC-based authentication |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS,TACACS+ |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Airflow direction | Side-to-side airflow |
| Power | |
| Power consumption (max) | 33 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
| Width | 17.4' (442 mm) |
| Depth | 7.91' (201 mm) |
| Height | 1.73' (44 mm) |
| Weight | 5.73 lbs (2.6 kg) |
| Marca | Aruba |
|---|---|
| MPN: | JL678A |
