Trendnet ti-mgbsx Módulo Lc Multimodo Sfp 1000b Base-sx Industrial (550 M)
Precio especial $1,075.00 IVA incluido + Envio $150 MXN
Antes $1,247.00
Disponible 0 Pzas
Antes $1,247.00
Disponible 0 Pzas
Agotado
pub
MX00000069259
Description

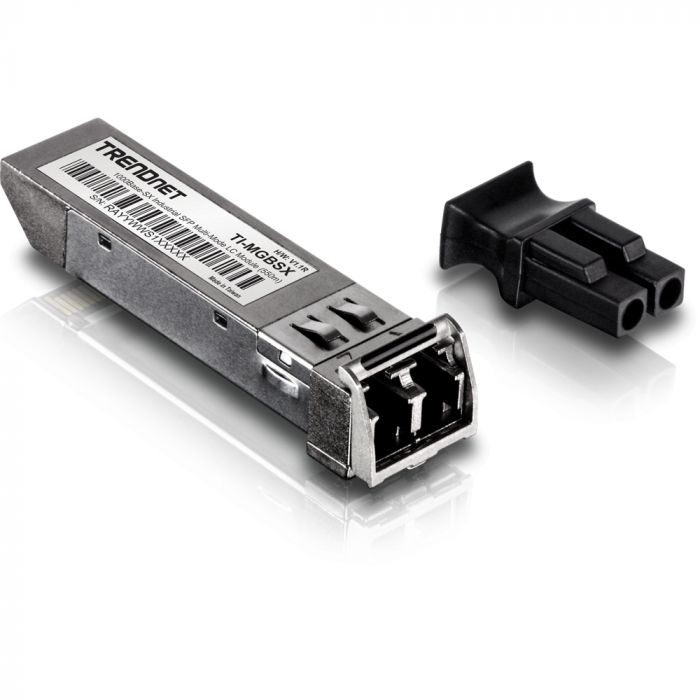

The 1000Base-SX Industrial SFP Multi-Mode LC Module, model TI-MGBSX, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBSX is compatible with Duplex LC fiber connector types and supports gigabit multi-mode fiber connections at distances of up to 550 m (1804 ft.).
Specifications
| Networking | |
|---|---|
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3z |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Performance | |
| Product colour | Grey |
| Housing material | Metal |
| Hot-Plug support | Yes |
| SFP transceiver type | Fiber optic |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3z |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 21653.5' (550 m) |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Duplex system | Full |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Features | |
| Product colour | Grey |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Certification | MSA FCC CE |
| RX sensitivity | -20 dB |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 0.512' (13 mm) |
| Depth | 2.24' (57 mm) |
| Height | 0.335' (8.5 mm) |
| Weight | 0.6 oz (17 g) |
| Packaging data | |
| Number of products included | 1 pcs |
| Other features | |
| RX sensitivity | -20 dB |
| Certificates | |
| Certification | MSA FCC CE |
| Packaging content | |
| Number of products included | 1 pcs |
| Marca | Trendnet |
|---|---|
| MPN: | TI-MGBSX |
